Coesfeld GmbH & Co. KG

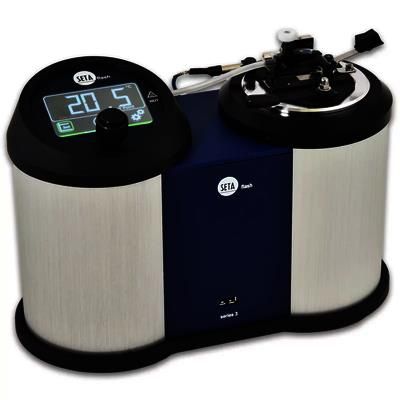

SetaflashModel 3 Series -High Temperature Tester

SHARE

Flash point tester, semi-automatic, closed cup, RT up to 300 °C. The Setaflash-Tester uses a gas ignitor and Test Cup with Lid and Shutter. All functions on the Series 3 flash point tester are accessed via a colour digital display and touch screen icons which guide the operator through a straightforward testing process. The digital display shows test parameters, instrument status, and the test result. Automatic flash detection.

Most popular related searches
  • automatic flash point detection
  • Simple test procedure
  • Ramp Mode
  • Results storage and export via USB

  • Temperature Range: 10 °C to 135 °C
  • Sample Volume: 2ml or 4ml
  • Test Duration: 1 min under 100°C, 2 min over 100°C
  • Test Method: Ramp Mode
  • Ramp Rate: up to 6 °C/min
  • Dimensions (W x D x H): 295 x 195 x 140 mm
  • Weight: 3 kg
  • Mains: single-phase, 110/120V or 220/240V switchable, 50/60 Hz
  • ASTM D1655
  • ASTM D3278
  • ASTM D3828
  • ASTM D7236
  • ASTM E502
  • DIN EN ISO 3679
  • DIN EN ISO 3680
  • IP 523
  • IP 524
  • IP 534
  • ASTM D8174
  • EPA 1020 B
  • ADR Gefahrgutverordnung
  • CLP Regulations EC No 1272/2008
  • IATA-Gefahrgutvorschriften
