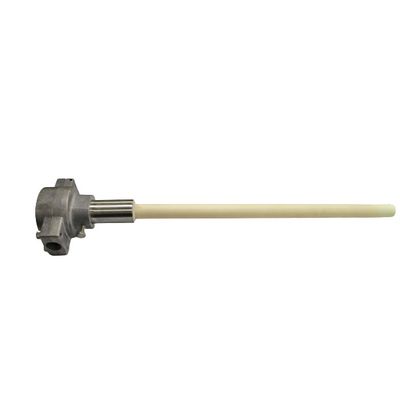

Peak Sensors - High Temperature Thermocouple Assembly With Ceramic Sheath

• High temperature platinum temperature sensor
• Designed specifically for your application / environment
• Will withstand tough industrial use

• Special materials available on request
• Lining sheaths for porous materials available
• Shanks fitted for head assembly
• Adjustable or welded flange on shank
• Pressure tight design available
• Probe calibration

This particular design of rare metal thermocouple is a very common temperature sensor which we regularly supply to high temperature industries.

Type Designation: RMC
Temperature Range: 0 to 1700 ° C
Common Sensor Types: R, S, B
Common Sheath Size :
(ØD) Ø 6.0, 8.0, 10.0, 12.0, 13.0, 15.0, 17.0, 20.0, 25.0, 28.0mm
Common Element Diameters: Ø 0.15mm to 0.5mm
Shank material:
(SL) Plated MS, stainless steel , chrome iron, alloy 600.
Head options: ALA, KNE (IP65), HR AL BL (flip top), many others

Material: Max Temperature
Recrystalised alumina (alsint): 1750° C
Silicon carbide (recrystalised): 1600° C
Sillimanite 60: 1600° C
Aluminous Porcelain (pythagoras): 1500° C
Quartz: 1500° C
Silicon carbide (clay bonded): 1400° C
Syalon 101: 1000° C
