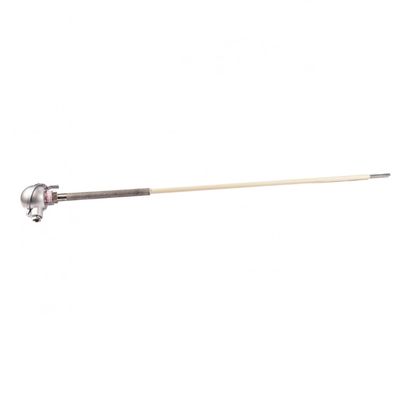

Peak Sensors - High Temperature Thermocouple Assembly With Platinum Thimble
The sensor can be protected by a ceramic sheath with a platinum thimble at the hot end. This design is often used in container glass forehearths to take uniformity measurements but can be applied to other applications if suitable. This sensor is designed for immersion use in container glass foreheaths to take uniformity measurements, but can be used for other environments if required.
- High temperature platinum thermocouple for glass
- Designed specifically for your application / environment
- Duplex and Triplex Options
- Extension HT cable supplied fitted to sensor
Type Designation: RMT
Temperature Range: 0 to 1750 ° C
Common Sensor Types: R, S, B
Common Sheath Size: (ØD) Ø 6.0, 8.0, 10.0, 12.0, 13.0, 15.0, 17.0mm
Thimble wall thickness: Ø 0.25, 0.38, 0.4, 0.45, 0.5mm
Common Element Diameters: Ø 0.15mm to 0.5mm
Shank material: (SL) Plated MS, stainless steel , chrome iron, alloy 600.
Head options: ALA, KNE (IP65), HR AL BL (flip top)
Material: Max Temperature
Platinum: 1750° C
Platinum 10% rhodium: 1750° C
Platinum grain stabilised: 1750° C
Platinum 10% rhodium grain stabilised: 1750° C
