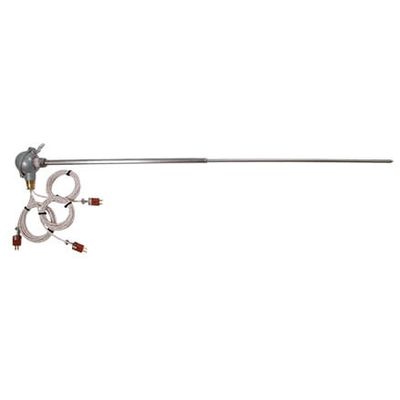

Peak Sensors - High Temperature Thermocouple With Full Platinum Thimble
If required the sensor can be protected by a full length platinum thimble. It is a more robust design of the Rare Metal Thermocouple Assembly with Platinum Thimble. This sensor is designed for immersion use in container glass foreheaths to take uniformity measurements, but can be used for other environments if required. It is a more robust design of the High Temperature Thermocouple With Platinum Thimble.
- High temperature platinum thermcouple for glass
- Designed specifically for your application / environment
- Duplex and Triplex Options
- Extension HT cable supplied fitted to sensor
Type Designation: RMF
Temperature Range: 0 to 1750 ° C
Common Sensor Types: R, S, B
Common Element Diameters: Ø 0.45mm or 0.5mm
Thimble wall thickness: Ø 0.25, 0.38, 0.4, 0.45, 0.5mm
Shank material: Alloy 600
Head options: ALA, KNE (IP65), HR AL BL (flip top)
Material: Max Temperature
Platinum: 1750° C
Platinum 10% rhodium: 1750° C
Platinum grain stabilised: 1750° C
Platinum 10% rhodium grain stabilised: 1750° C
