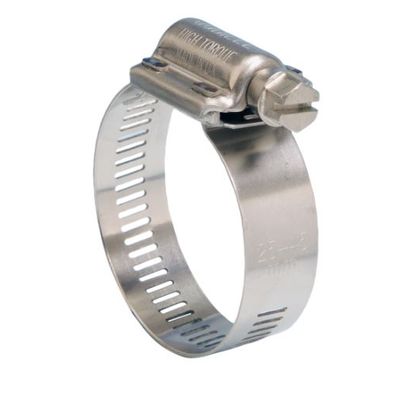

Jubilee - Model HT035 -High Torque Stainless Steel 20-35mm
Jubilee® High Torque Clips are suitable for heavy duty applications with plastic or reinforced hoses. The high clamping forces make this clip suitable for heavy duty applications.
Most popular related searches
Part number: HT035
Range: High Torque
Material: 304 Stainless Steel
Min. Diameter (mm): 20
Max. Diameter (mm): 35
Band Width (mm): 15.7
Band Thickness (mm): 0.7
Recommended Torque (Nm): 11.9
Max. Torque (Nm): 17
Max. Pressure (PSi) 304.5
Fastening: 8mm A/F Screw
Corrosion Resistance (NSS Test): 1000h
