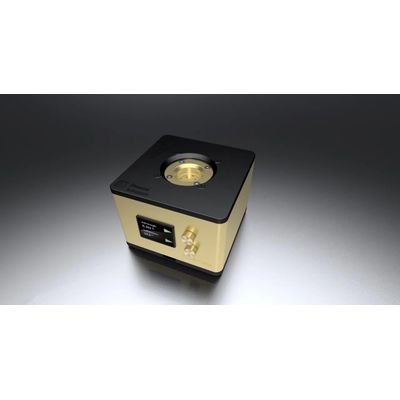

Model FLUXmoto -High-Uniformity In-Plane Magnetic

• Maximum field strength: 0.28 T
• Minimum field strength: 0.01 T
• Uniformity: +-2.5% within 10mm-square area
• Tunability: both field strength and direction within the plane.

Physical

• Size: 150x150x100mm (WxDxH)
• Active sample area: 15x15mm
• Weight: 6.5 kg
• Temperature range: 0-50°C

Cooling and electrical

• 24V supply
• Cooling requirements: none

• Motorised stages to control field strength and direction
• Touch-screen to control and display magnetic field strength and direction, including auto-rotate function
• Computer control via serial communication
• Platform provided for convenient sample mounting
• Vertical thru-hole to allow access to samples from below (e.g. for integration in a microscope or laser access)
• Large sample space (e.g. to allow use with bulky samples or integration with microwave resonators)
• Cage mount compatible and side mountable to allow easy integration with other apparatus
