Lev-Co - Model V2 - 120 CFM -12-003 -High Vacuum Systems
The V Series High Vacuum Systems are filtration systems designed to be used to capture fumes & dust as close to the source of emission as possible. Typically fumes & dust are captured “On-Tool” (in the case of handheld grinders) or “On-Gun” (in the case of welding guns).

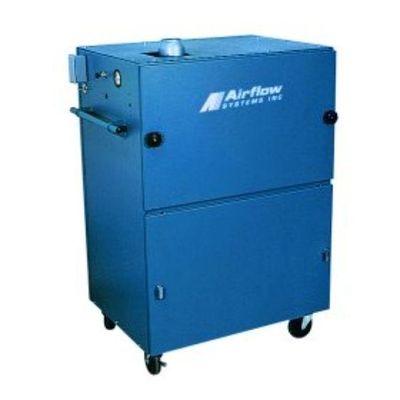

The V2 is a portable high vacuum cartridge collector with an easy to use self-cleaning feature. It is designed for use with multiple users and has a low noise level for user satisfaction.
PERFORMANCE:
- 100 CFM@ 60" W.G. - 2.5 HP Motor
- 120 CFM@ 60" W.G. - 3.5 HP Motor
- 12 Ga. welded steel cabinet with powder-coat finish
- 2 Clean 2® filter cartridges 107 ft2 of media each
- Vibra-Pulse® cleaning system
- Includes full-width handle
- 5” swivel casters
- (2) 2” NPT fittings reduced to 1 ¾” O.D.
- Male hose connections
- Motor wired to a side junction box. (Motor starter not included)
- Main System Part #: V2-2.5-2
- Height x Width x Depth: 56"H x 39"W x 31"D
- Weight: 320 lbs
- Continuous-duty Blower: Provides longer life and greater reliability.
- Non-electrostatic Operation: High reliability, low maintenance.
- Over 99% Efficient Collection: Simplifies OSHA and insurance compliance.
- Vibra-Pulse® Filter Cleaning System: Cleans filters 75% more effectively than reverse pulse systems.
- Easy Filter Backflush: Push-button operation eliminates cleanup hassle and reduces downtime.
- Noise Level (dBA): 72/75
- Must order hose connector separately.
Top 5 contaminants/processes/applications:
- Dry Dust Applications
- MIG Welding
- Finish Grinding and Solder Applications
- On-tool Grinding
- Smokeless Gun
Don`t see your contaminants? Give us a call! 1-888-862-5356 or Click our instant chatbox.
IMPORTANT: For your Health and Safety, make sure to talk to an application engineer before purchasing.
V410-5-1
Portable High Vacuum Filter for up to 10 welders 230/460/3/60. AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.
V2-2.5-1
Portable high vacuum cartridge collector c/w 2.5 HP motor 230/460/3/60 Hz. AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.
V2-2.5-2
Portable high vacuum cartridge collector c/w 2.5 HP motor 575/3/60 Hz. AS PER CANADIAN LAW; this unit is electrically approved by CSA/ESA field evaluation.
- Filter Options (when ordering with main unit)
- Replacement Filters
- Sound Attenuation
- Preventative Maintenance Pressure Gauges (when ordering main unit)
- "Hi-Vac" Hoses, Wire Reinforced
- Hose Connectors and Fittings
- Variable Frequency Drives
- Silencer Option (when ordering main unit)
