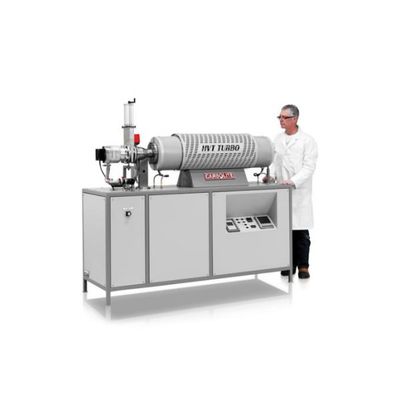

Carbolite - Model HVTT Series -High Vacuum Turbo-molecular Tube Furnaces

FromCarbolite Gero Ltd - part of Verder Scientific

SHARE

The HVTT high vacuum turbo-molecular tube furnaces are available in three standard sizes. A range of tube lengths and diameters is available. The HVTT high vacuum tube furnaces at 1500 °C are available with two work tube diameters. These high vacuum furnaces are often the starting point for additional customisation such as automated control of gate valves, gas purge, back-fill systems and co-ordinated control of roughing pump with the turbo-molecular high vacuum pump.

Most popular related searches

vacuum tube furnace

turbo molecular pump

stainless steel flange

radiation shielding

1200°C or 1500°C maximum operating temperature
Capable of 10^-5 mbar vacuum in a clean empty work tube
Supplied with work tube inner diameters of 50, 60 and 80 mm (HVTT 12) or 50 and 75 mm (HVTT 15)
Heated lengths of 450, 550 mm or 700 mm
Vacuum provided by oil-free scroll pump & turbo-molecular pump
Cooling water failure alarm
Manually operated roughing / backing valve
Pirani gauge low vacuum monitor
Penning gauge high vacuum monitor
Work tube connects to the vacuum system via stainless steel connection
Access to the work tube is via a removable stainless steel vacuum flange
Radiation shields at both ends of the work tube maintain uniformity without reducing pump speeds
All controls are mounted within the base unit

Over-temperature protection (recommended to protect valuable contents & for unattended operation)
A range of sophisticated digital controllers, multi-segment programmers and data loggers is available. These can be fitted with RS232, RS485 or Ethernet communications
Custom built models including a variety of gas backfill systems, automatic & semi-automatic vacuum systems and 3-zone control for improved uniformity is available

HVTT 12/50/550

Max temp (°C) : 1200
Dimensions: Worktube inner diameter (mm) : 50
Dimensions: Heated tube length (mm) : 550
Dimensions: External H x W x D (mm) : 1450 x 1700 x 600
Max power (W) : 2000
Holding power (W) : 1600
Thermocouple type : N

HVTT 12/60/700

Max temp (°C) : 1200
Dimensions: Worktube inner diameter (mm) : 60
Dimensions: Heated tube length (mm) : 700
Dimensions: External H x W x D (mm) : 1450 x 1700 x 600
Max power (W) : 3000
Holding power (W) : 1800
Thermocouple type : N

HVTT 12/80/700

Max temp (°C) : 1200
Dimensions: Worktube inner diameter (mm) : 80
Dimensions: Heated tube length (mm) : 700
Dimensions: External H x W x D (mm) : 1450 x 1700 x 600
Max power (W) : 3500
Holding power (W) : 2800
Thermocouple type : N

HVTT 15/50/450

Max temp (°C) : 1500
Dimensions: Worktube inner diameter (mm) : 50
Dimensions: Heated tube length (mm) : 450
Dimensions: External H x W x D (mm) : 1565 x 1700 x 600
Max power (W) : 5500
Holding power (W) : 4800
Thermocouple type : R

HVTT 15/75/450

Max temp (°C) : 1500
Dimensions: Worktube inner diameter (mm) : 75
Dimensions: Heated tube length (mm) : 450
Dimensions: External H x W x D (mm) : 1565 x 1700 x 600
Max power (W) : 5500
Holding power (W) : 4800
Thermocouple type : R
