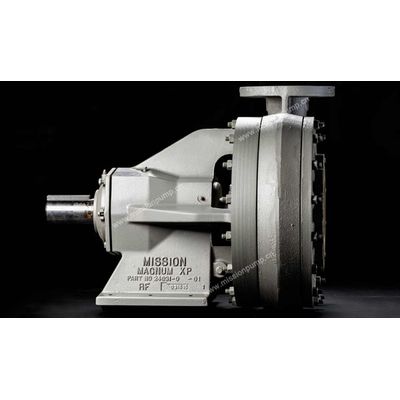

Mission Magnum - Model XP -High-Volume Mobile and Stationary Pump
The Magnum XP is ideally suited for pumping high volumes of heavy slurries that are abrasive, corrosive, and difficult to pump. The compact overall dimensions make it an excellent choice for high-volume mobile and stationary applications for which a small footprint is critical. Designed for continuous operation with minimal maintenance, this model is engineered to provide maximum seal life with low stuffing box pressure and an extra-heavy shaft design.
A unique casing flow divider on the 12x10x23 and 14x12x22 cuts the radial load in half, doubling bearing life. The heavy-duty bearings are permanently lubricated to minimize maintenance. The Mangum XP is capable of handling flow rates up to 7,500 gal/min and differential head pressures up to 420 ft.
