Muncie - Model 82 Series -High Volume or Multiple Section Hydraulic Pump

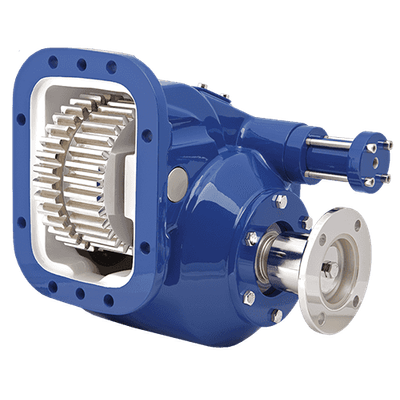

The Muncie 82 Series is a heavy-duty, 8-bolt power take-off designed for driving mechanical equipment and high volume or multiple section hydraulic pumps with high-torque requirements. The 82 Series features a cast iron housing, lever or air shift and optional single or dual hydraulic pump mounts.
Most popular related searches

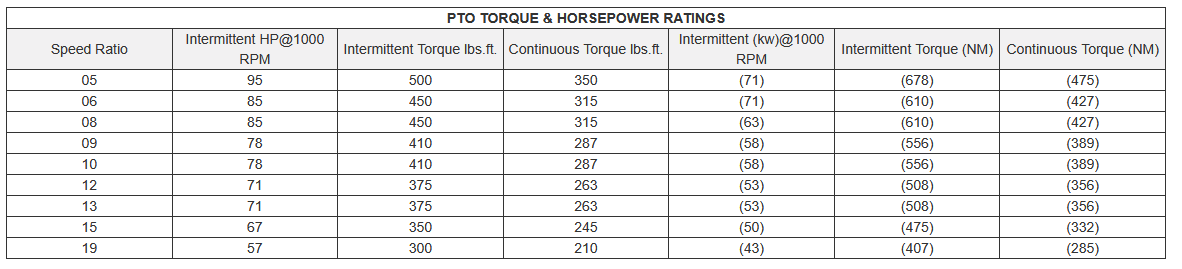

- Up to 500 lbs.ft. torque capacity and 95 H.P. at 1,000 RPM: Power to drive high-volume pumps, high CFM blowers
- Double-acting air shift: Positive engagement and disengagement
- Two companion flange output types: Versatility for remote pump and mechanical drives
- Seven direct mount pump options: S.A.E. "B," "BB," "C," "D;" and DIN 5462 mounts
- Rotatable direct mount flanges: Allows pump to be positioned for maximum clearance
- Weight: 85 lbs.
- Housing construction: Cast iron
- Speed ratios: 8
- Output shaft options: 9
- Rotatable pump flange: Standard
- Assembly arrangements: 2
