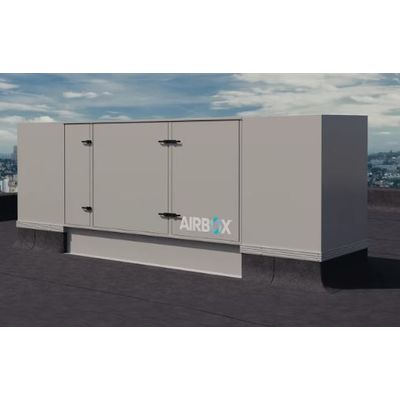

AirBox - Model Vortex HVP -High Volume Purification Unit for Commercial Spaces

The Vortex HVP is a high-volume purification unit engineered for extensive commercial environments, capable of delivering up to 9,200 CFM of clean airflow. It supports adherence to ASHRAE Standard 62.1 for indoor air quality, offering the option to decrease energy consumption through the use of recirculated, purified air while staying within design limits for all building compounds. The unit features a 4-stage filtration system, ensuring robust particulate and gaseous contaminant control. Its construction includes a direct-drive variable speed fan motor, enhancing both reliability and efficiency by removing the need for additional drive components. The Vortex HVP provides flexibility in installation with various integration and mounting configurations. It is suitable for diverse environments such as educational institutions, healthcare facilities, public assembly venues, and large retail spaces. Electrical specifications include a 3-phase, 200-240 VAC, 50/60Hz power supply, with the unit being IP55 UL listed.
