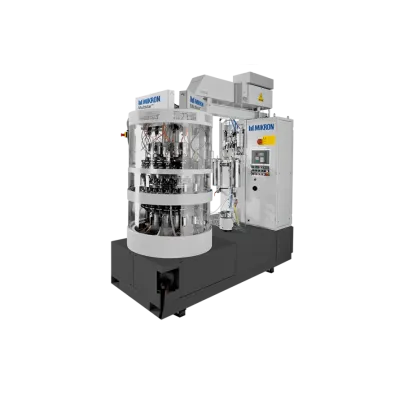

Mikron - Model Multistar LX-24 -High-Volume Rotary Transfer Machine

SHARE
The Mikron Multistar LX-24 is an advanced rotary transfer machine engineered for the high-volume production of small precision components. It stands out due to its exceptional speed and mechanic-driven simplicity, capable of producing up to 600 workpieces per minute. This system is particularly suited for mass manufacturing tasks, delivering high precision over extended operations, and can handle diverse workloads simultaneously due to its parallel-concept technology. This flexibility makes it suitable for producing various components like electrical and electronic contacts, fiber optic connectors, ballpoint pen tips, and medical parts. The machine's design enables smooth integration into production lines, doubling or quadrupling output by dividing work areas while maintaining efficiency. This makes it a valuable asset in industries requiring high precision and vast quantities.
Most popular related searches
fiber optic connector
variable frequency drive motor
variable frequency drive
spindle
drill cuttings

Highest productivity and performance

What makes the Mikron Multistar LX-24 rotary transfer machine so exceptional? It’s its incredible speed for high volume production as well as its simple and functional construction, which is completely mechanically driven.

The Mikron Multistar LX-24 is a highly unique machining system for the production of small precision parts in very large quantities.

One run produces up to 600 simple workpieces per minute. By separating the work areas, the output can be doubled, tripled or even quadrupled at the same high machining speed.

With the same parallel-concept, the complete production of different workpieces is possible within one run.

The Mikron Multistar LX-24 is therefore the ideal partner for smooth mass production of electrical and electronic contacts, fiber optic connectors, nozzles, valves, ballpoint pen tips and medical parts.

  • World's fastest rotary transfer machine: Unmatched processing speed means economical mass production
  • High precision and repeatability
  • Absolute reliability
  • High ease of use
  • Minimal maintenance required
  • Excellent price/performance ratio
  • Simultaneous machining on two sides at each station
  • Multiple cycles for extremely high volumes
  • Parallel production of two parts (e.g. plug and socket)
  • Load and unload time parallel to the machining process
  • Fast and easy tool change
  • Additional 24 intermediate stations for measuring, controlling and cleaning on request
  • Up to 44 work spindles
  • Can produce up to 600 simple parts per minute
  • Ideal for production of at least one million parts per year
  • Work area separation doubles, triples or quadruples production rate
  • Machining can be performed from below, above or from the side, e.g. for drilling, turning or thread cutting
  • Mechanical control with perfectly matched accelerations and feeds provides speed
  • Variable frequency motor drives work spindles in pairs via toothed belt
