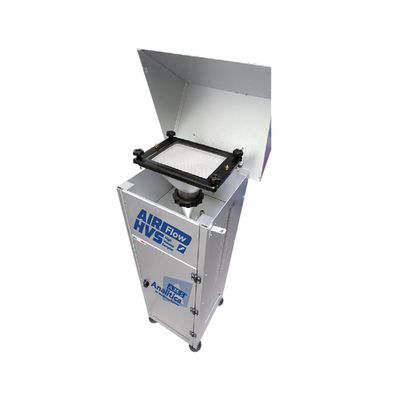

AirFlow - Model HVS-TSP -High Volume Sampler for Environmental Parameters

• Flow range 120-1400 liters/minute
• Venturi electronic flow control system (ISO-5167)
• High resolution large display LCD backlight RS 232 PC interface and USB port for easy files download
• Sampling period are microprocessor based with standard deviation control and pressure drop check on filter
• Wind velocity and direction connection interface included (no sensors)
• Remote data handling with GSM/GPRS protocols (Optional)
• External shelder in anodized aluminium for outdoor applications
• Ambient temperature and barometric pressure detected
• Adapter kit available to convert Puf sampler in high volume PM sampler
• Class protection IP55
• Adapter low ambient temperature kit (Max.-30°C)

The follolwing data are available at display in a different screens:

• Selected sampling time (Max 9999 minute)
• Residual sampling time to stop
• Ambient Temperature
• Sampler cabinet temperature
• Barometric atmospheric pressure
• Sampling flow-rate
• Total sampling volume
• Total standardized sampling volume
• Sampling faults (flow or sensors readings)
• Wind velocity and direction (with optional sensors installed)
• Stored sampling data

The new microprocessor capabilities allow the user to select and store in the memory up to 3 different programs with sampling settings ready to start. Four different parameters are available on the main screen in a graphic format as Ambient Temperature, Barometric Pressure, Flowrate and Standard Deviation. Automatic re-start after power shut-off with all data stored in the memory.

Other Technical Features and Part numbers

• Flow range 120-1400 lit/min
• Pump type: Three stage brushless motor
• Maintenance period: Up 20.000 hours depending on work conditions
• Power source: 220/240 V-AC 50 Hz
• Power Comps. (Ampere) 15 at start / 4 during sampling procedures
• Operative conditions -5° / +50° (-30°C with heating conditioning system)
• Dimensions 120x37x37 cm (hxlxp)
• Weight (Kg.) 14 Kg

Code: Product

• 600/AFTPS1001K: Air Flow TSP high volume sampler
• 600/GRMET001K: Wind speed and direction sensor with assembly kit
• 600/AFPUF1001GSM: GSM modem
• 600/SCS001K: Heating conditioning system (Max.-30°C)
• NFS/GF1-8X10-100: Glass Fiber Filter Grade GF1 (Eq.GFA) 20x25 (8x10 inch) box of 100
• FAN/MFQ203254: Quartz Filter 8x10 box of 25pcs
