Sierra - Model CalTrak 800 -Highest Accuracy Gas Flow Calibration Equipment

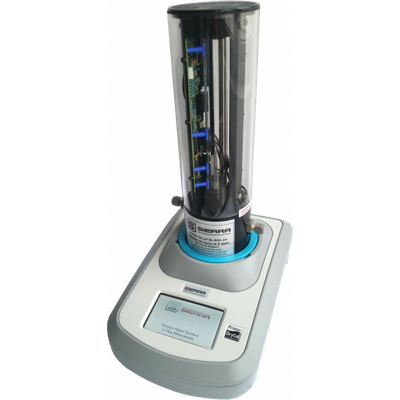

All of our CalTrak models contain a nearly frictionless graphite piston that moves freely inside a borosilicate glass tube. When the parallel bypass valve is closed, the gas flow is directed into the tube to push the piston up. Two photo-optic sensors detect the piston as it travels past.

The distance the piston travels between the two sensors is precisely defined and represents a known volume. Accurate crystal-based timers drive a microprocessor which calculates the rate of rise. This defines the volumetric flow rate.  At the same time, extremely accurate temperature and absolute pressure sensors collect data used to calculate the mass flow rate.

View CalTrak Selection Chart

• The performance of only the highest level metrology laboratories can now be yours
• Highest accuracy primary standard for labs & industry (compare at ± 0.15% of reading)
• Innovative – 100:1 turndown ratio; widest flow range of all CalTrak systems
• Proven dimensionally-based primary standard accuracy backed by a rigorous uncertainty analysis
• Manufactured to ISO 17025 standards at a NVLAP-accredited lab
• Collected data is directly traceable to NIST
• Surpasses pressure-based secondary methods
• Everything you need to do your own flow calibration
• Less expensive than most popular secondary standards
• Field portable and battery powered
• Suitable for most non-corrosive gases
• Accurate and reliable gas flow readings independent of gas species measured
• Reading options: Single, continuous or burst, with user-selectable averaging from 1 to 100
• Run automatically in continuous mode or operate manually (one flow reading at a time)
• Take up to up to 100 measurements in an average continuous mode sequence
• Easy to use, large LCD readout screen and 23-button keypad
• Generates calibration certificate easily
• Communicate via RS-232, USB, and use free CalSoft® software included
• CalSoft® software automatically acquires flow data for easy data export
• Kit consists of a base and five interchangeable flow cells
• Entire kit is packaged in a Pelican case for safe transport
• Each flow cell has a specific flow range
• Each flow cell is easily changed (no tools needed) within seconds
• Flow cells can be purchased separately; Get started with one, add more later
• Cover a broad set of instrument flow ranges at your facility
• No mercury or other hazardous materials
• Low maintenance

• All clean gases, non-corrosive, humidity less than 70% non-condensing
• Mass and volumetric flow rate
• Accuracy: 5 sccm to 100 slpm*
  • Volumetric: ±0.15% of reading
  • Mass: ± 0.15% of reading*
• Accuracy: Ultra Low flow 0.5 sccm to 50 sccm*
  • Volumetric: +/-0.25 plus 0.002 ccm
  • Mass: +/- 0.25% of reading*
• Overall flow range:  0.5 sccm to 100 slpm (Five interchangeable flow cells available)
  • 800-3: 0.5 sccm to 50 sccm*
  • 800-10: 5 - 500 sccm (0.5 slpm)*
  • 800-24: 50 - 5000 sccm (5.0 slpm)*
  • 800-44: 500 - 50,000 sccm (50 slpm)*
  • 800-75:  1000 sccm -100 slpm*
• For higher flows, see CalTrak XL flows up to 1500 slpm*
• Flow mode: Pressure or suction
• Operating temperature:
  • Volume: 5°C to 40°C (41°F to 104°F)
  • Mass: 15°C to 30°C (59°F to 81°F)
• Ambient temperature:
  • 15°C to 30°C (59°F to 86°F)
• Operating pressure:
  • 15 psia (1.03 barA)
• AC power adapter/charger:
  • 100-240 VAC, 50-60 Hz
  • 12V DC, >500ma, 2.5 mm, center positive,
    North American standard, others available
• Battery:
  • Internal continuously chargeable sealed lead-acid battery
  • 6-volt lead acid battery
  • Operational Time (5 cycles/min)
• Dimensions:
  • Height: 17 inches (436 mm)
  • Width: 6 inches (152 mm)
  • Depth: 11 inches (280 mm)
• Weight:
  • Base: 43.5 oz (1233 g)
  • Cells: 80 oz (2300 g) to  160 oz (4535 g) flow cell dependent
• CE approved
• RoHS compliant
• Digital communications: RS232 / USB Port
