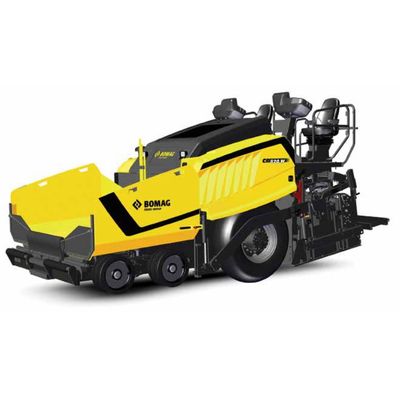

Bomag - Model CR 820 W -Highway Wheeled Paver

SHARE

CR 820 W: Improved Visibility, Operating Efficiency and Highway Class Machine. BOMAG 8-foot (2.4 meter) wheeled pavers feature a new operator’s platform, new controls and improved visibility.

Most popular related searches
sound insulation
emissions data
visible emissions
  • Sound-insulated composite engine hood provides quieter paving for a better operator experience
  • A large multifunction color screen display on both consoles for easy viewing of critical operating function, gauges and parameters
  • The CR 820 Series boasts Three-point Suspension to float the paver over subbase irregularities and maintain preset screed slope and grade, delivering higher mat smoothness over commercial pavers with a fixed rear suspension
  • Dual, swing-out operator stations feature BOMAG SIDEVIEW innovation so the seat and console both swivel outward at four differing angles for unobstructed views
  • Open-grate design on the platform floor affords the operator direct-line sight of the screed spreading augers
  • Tier 4 final (Stage V) 160 hp (119 kW) engine offers ample reserve and efficiency for full-width paving, while having enough power in reserve to operate the screed’s generator and lights for nighttime paving
  • Stretch® 16 hydraulically extendible screed for infinitely variable paving widths from 8-16 feet (2.4-4.9 m) and a maximum paving depth of 12 inches (305 mm)
  • Quick-connecting extension kits deliver a maximum paving width of 20 ft (6.1 m)
  • The screed’s new automatic screed lock keeps the screed securely in a raised position for transport, maintenance and storage
  • Emission stage Stage IV / TIER4f
  • Weight 15.649 kg
  • Working width (min-max) 2.400 - 4.900 mm
