  4. Hiltra - Model GB 1 - Gas Cylinder Box

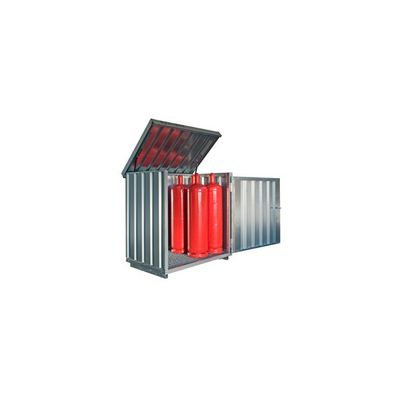

HiltraModel GB 1 -Gas Cylinder Box

SHARE

Article number: 1770. Dimensions external WxDxH: 1420 x 1080 x 1470 mm. Dimensions internal BxDxH: 1300 x 800 x 1300 mm. Weight: 134 kg. Implementation: fully galvanized steel. Capacity 33 kg bottle Ø 30 cm: 11 pieces (shown). Capacity 11 kg bottle Ø 30 cm: 22 units (with optional shelf). Capacity 10 ltr bottle Ø 15 cm: 54 pieces. Door: lockable zinc plated revolving door.

Most popular related searches

Models

HILTRA® GASFLESSENBOX GB

Version 1.0 | 24-12-2019

  • Designed as non-fireproof gas cylinder storage based on the guideline PGS 15.
  • Executed in accordance with the German TRG 280 (Technische  Regel Druckgase).
  • TÜV approved,  permanent constructive natural ventilation and de-aeration.
  • Casing and door made of galvanized steel sheet profiles.
  • Roof on the front and rear side equipped with a rain gutter with two outlets. Roof to open upwards;
  • Roof lockable on the inside by means of two snap locks.
  • Floor based on galvanized gratings.
  • Floor frame on the underside equipped with two stand rails and fitted with galvanized gratings.
  • Safety signs by means of pictograms: "danger storage gas bottles" and "fire, naked flame and smoking prohibited".
