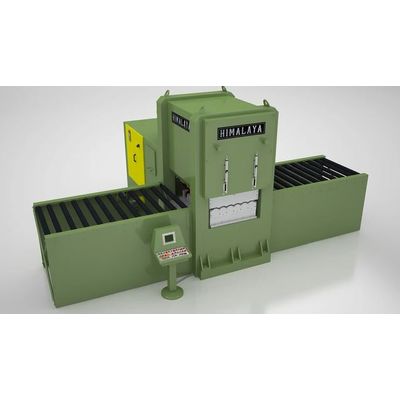

Himalaya - Plate Levelling Machines
Our top-of-the-line Plate Levelling Machines are designed for hassle-free usage and high precision; to ensure peace of mind and operational ease for plate levelling jobs. Himalaya’s plate levelling machines deliver a multi-fold advantage to your fabrication infrastructure - a remarkably efficient and lasting performance, an unbeatable levelling precision, reduced capital expenditure, and lower ongoing operational and maintenance costs.
Sturdy Steel Structure
Rigid structure designed to sustain the maximum separating forces generated during the levelling process.
Leveller Rolls
Made of alloy steel hardened to HRC 60 (approx.) and mounted in high grade antifriction bearings.
Backup Rolls
Designed to support the main rolls and sustain the forces created during levelling process.
They are made from alloy steel, hardened to HRC 54 (approx.) and ground Lubrication.
Banks of back up rollers ensure less pitch between straightening rolls & minimum deflection of rolls resulting in very good plate straightening accuracy.
The gear boxes of the drive are splash lubricated. The bearings of backup rolls are grease packed and provided with fittings for periodic re-lubrication.
High Accuracy
Excellent levels of accuracy of levelling operations, within ± 0.5 to 0.2 mm per meter for the rated capacity range.
Better Control
Variable operating speed provides better control to levelling process.
PLC Capability
Our machines are operated by PLC control panels that increase the operational speed while reducing operator fatigue. This leads to better output even with lower operator skills.
Safety
Plate levelling machines are designed with safety in mind. Electrical overload protection ensures that the machine is protected against power fluctuations as well as excessive load.
Our machines also come with mechanical safety spiders that provide an additional layer of safety to its functioning.
Conveyor (Optional)
We can provide, upon request, conveyors to aide in feeding and retrieval of plates.
