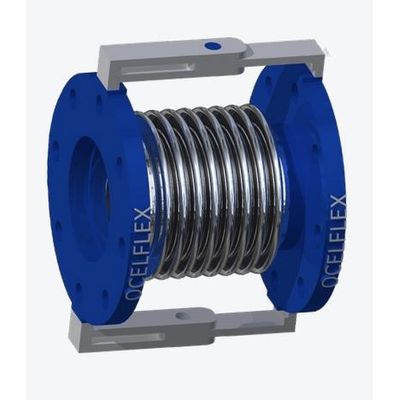

Ocelflex - Hinged Angular Expansion Joint
Hinged metal expansion joints are capable of significant angular movement. The angular movement is provided by use of metal hinges. The hinge mechanism is typically designed to accept full pressure thrust.
1 1/2 inch to 60 inch.
Upto 500 mm or customised.
- 270 ? to 700 ?.
Full Vacuum to 15 bar.
Stainless Steel 300 Series
Inconel, Incoloy, Hastelloy
ASME B31.3
EJMA X
Spring Forces : None
Movement : None
Spring Forces : None
Movement : None
Spring Forces : Low
Movement : Medium
- Limit Rods
- Inner Sleeve
- Outer Cover
- Particulate Barrier
Hinged Angular Expansion Joints are used in sets of two or threes, as the arrangement can provide greater lateral and angular deflection. For a pair of hinged expansion joint, placed in unison, separated by a segment of piping, the lateral movement is directly proportional to the distance between their hinge pins and the angular rotation that the expansion joint is capable of.
