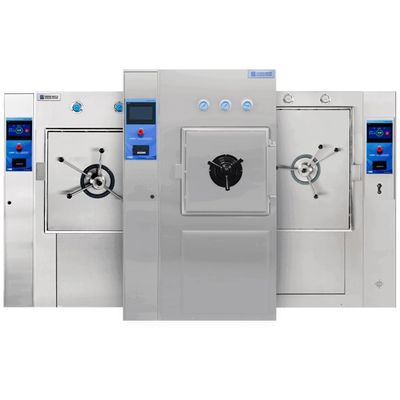

CSS - Model Single Door -Hinged Autoclave
Consolidated’s hinged door sterilizers have been used for decades by sterilizer users around the world. Quite simply, they are built to last and easy to maintain. All hinged-door sterilizers can be customized to suit any unique requirements and applications of a particular facility. For example, you may choose what side you prefer to have the hinge located. With maximum uptime engineered into the product, Consolidated’s sterilizers offer a superior return on investment as demonstrated through thousands of installations worldwide.
Only CSS Gives you:
- Made In the USA
- Lowest Total Cost of Ownership
- Proven Quality & Reliability
- Intuitive, Easy-to-Use Controls
X1 Controls
All sterilizers come equipped with this state-of-the-art and easy-to-use control system that allow up to 50 programmable cycles and password protection. Read more about it below.
Non-Proprietary Parts
Consolidated’s sterilizers consist of high quality, non-proprietary parts that can be easily obtained from local suppliers, authorized service groups, e-store, or directly through Consolidated.
Made to Order
Consolidated offers many autoclave customization options to accommodate your unique lab space. Other manufacturers do not provide the level of customization that Consolidated offers.
Sustainability
Save water and energy in your lab with utility-saving features that are built into our sterilizers. Read more about them below.
Low Cost of Ownership
Consolidated sterilizers are manufactured to be easily serviced and maintained by in-house personnel or your local authorized service technician.
Unique Chamber Construction
Consolidated is the only manufacturer to offer both 316L stainless steel and nickel-clad chambers. Choose the chamber that best suits your application while maximizing chamber lifespan. Read more about materials below.
The X1™ control system include these user-friendly features:
- Intuitive user interface with modern, easy to view 7″ touchscreen display.
- Ability to program up to 50 sterilization cycles.
- Ability to add “favorite cycles” shortcuts for quick access.
- Ability for managers to prevent users from modifying sterilization parameters on individual cycles.
- Built from industry-standard, open-source components allowing for easy availability of parts and service.
Reducing the utility costs and carbon footprint are important consideration for many facility and sustainability stakeholders. Consolidated understands the role autoclaves can play, and we’ve developed these state-of-the-art configurations to significantly reduce water and energy usage for both new and existing sterilizers. Learn More
All new sterilizers are equipped with a calendar-based automatic start-up and shut-down feature known as EcoCalendar. This feature helps minimize utility consumption and HVAC load through a software controlled, automatic steam shut-off program. Utilities can be programmed for automatic start-up and shut-down based on time of day and day of the week.
EcoJacket is included on all new sterilizers and automatically lowers the temperature of the sterilizer jacket in between cycles, thereby reducing steam and water usage and heat-load to the room.
Like the EcoCalendar, this feature is equipped on all new sterilizers and helps save energy by shutting the steam supply off when not in use. It functions similarly to a “sleep-mode” for your home computer. Simply set the desired idle time and the autoclave will enter Sleep Mode after the set idle time has elapsed. This is an easy way to save energy (both steam and conditioned air) and water and is ideal for sterilizers that are periodically used.
The WaterEco system is included on all Consolidated sterilizers. In addition to saving water, it monitors water consumption and cools effluent using a combination of air, previously cooled effluent and a minimal amount of cold water. WaterEco systems compatible with chilled water are available as well. Learn More.
This feature integrates the sterilizer with a local canopy hood to reduce unnecessary venting of conditioned air. Form C Dry Contacts signal your building automation system to power-down the hood when the door of the autoclave is closed. This allows labs to better control the heat-load and environmental conditions within the lab.
Sterilizers utilizing house steam can be configured to allow for a jacket steam return. This helps save energy and steam consumption by returning sterile steam from the jacket back to the “house” facility boiler through a condensate return line.
