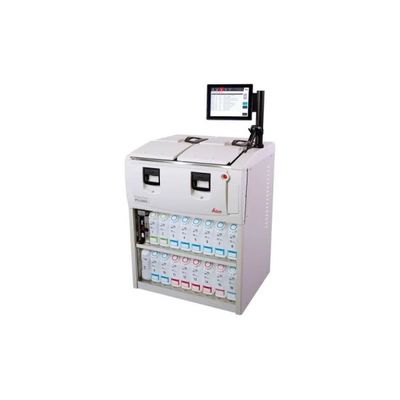

HistoCore PELORIS - Model 3 -Premium Tissue Processing System

Your Schedule, Your Way
Load and unload cassettes on your schedule, not the instrument`s. The unique dual-retort design, short cycle times and flexible protocols give you the flexibility to establish and adapt a workflow to meet the demands of your laboratory every day. Urgent biopsies coming in? A validated 1 hour rapid protocol has your back. Breast samples ready for diagnosis within the same day? No problem, thanks to an optimized 5 hour fatty tissue protocol.

High-Quality Results, Every Time
A magnetic impeller in each retort generates a reagent vortex to actively accelerate processing through rapid and even-heating, as well as active reagent distribution. THE ACTIVFLO SYSTEM provides ideal processing conditions for all tissues.

Maximize Your Processing with ActivFlo Cassettes
Maximize the effects of the ActivFlo system with validated ActivFlo cassettes. Compared to standard cassettes, ActivFlo cassettes drain up to 23% more efficiently than standard cassettes, resulting in a potential benefit for processing quality and efficiency, as well as reagent onboard longevity.

Foundation For Crisp Clear Stains
Histology workflows rely on efficiently fixed, processed and stained samples to enable reliable analysis. Optimal tissue processing conditions for each tissue type on the HistoCore PELORIS 3 lay the foundation for smooth downstream applications and the crisp, clear stains pathologists look for.

Confidence In Your Results
The HistoCore I-Scan technology captures each cassette individually, including cassette ID, quantity and color. Use the scanner as well to capture the basket ID, individual user ID’s, and reagent information.

Two built-in density meters monitor reagent changes and alert users if there’s an incorrect concentration to protect the integrity of the tissue.

The software provides you with added cyber security including Anti-Malware Protection with Windows® Defender and whitelisting detection.

Optimize Your Workflow with Leica Paraffin
Use Leica Paraffin with your HistoCore PELORIS 3 tissue processor to further improve your workflow. PELORIS Parablock paraffin melts 21% faster than pellets. Just load 5 blocks into the wax chamber and walk away. No need to top off paraffin.

OPERATING

• Dimensions (H x W x D): 1500 × 857 × 721 mm (59 × 33.7 × 28.4 in)
• Weight (Dry): 331 kg (730 lb)
• Weight (Including Reagents): 430 kg (950 lb)
• Work Surface Height (from Floor): Front – 1070 mm (42.1 in)
• Rear – 1110 mm (43.7 in)
• Cassette Capacity (Standard Protocols): 600 (High-Capacity) 528 (High-Capacity w/ Dividers)
• Cassette Capacity (Xylene-Free Protocols): 432 (Spaced)
• Retort Vacuum (Max.): - 70 kPa (g)
• Retort Pressure (Max.): + 45 kPa (g)
• Retort Agitation: Magnetically Coupled Stirrer (User-Selectable Operation)
• Reagent Bottles: 16
• Reagent Volume: 3.8 L to Max. 5 L (1 US Gal to Max. 1.32 US Gal)
• Paraffin wax stations: 4 (each station is capable of filling one retort)

ELECTRICAL

• Operating Voltage: 100 to 120 V~ 220 to 240 V~
• Operating Current (Max.): 15 A (100 to 120 V~) 10 A (220 to 240 V~)
• Mains Frequency: 50 to 60 Hz (100 to 120 V~) 50 Hz (220 to 240 V~)
• Power Consumption: 1450 W (100 to 120 V~) 2150 W (220 to 240 V~)

ENVIRONMENTAL (UNPACKED INSTRUMENTS)

• Maximum Ambient Temperature: 35°C
• Minimum Ambient Temperature: 5°C
• Humidity (Non-Condensing): 10 to 80% RH
• Altitude: 0 to 2000 m above sea level
• Sound Pressure Level Output (at 1 m): < 65 dB
• Maximum Heating Energy Output: 1450 W (100 to 120 V~) 2150 W (220 to 240 V~)
• TRANSPORT AND STORAGE (PACKED INSTRUMENTS)
• Storage Temperature: –40 to 76°C (–40 to 169°F)
• Storage Humidity (Non-Condensing): 10 to 95% RH
• Shipping Methods: Road and Air Freight Compatible
• Equivalent Altitude: < 4570 m Above Sea Level (i.e. the pressurization level of an aircraft)

HISTOCORE I-SCAN

• Dimensions: 174.5 x 64 x 38.8 mm (6.9 x 2.5 x 1.5 in)
• Weight: 235 g (0.5 Ibs) approx
• Buttons:
1. Fill-in LED on/off button
2. Scanning/Photographing trigger button
3. Tick button
