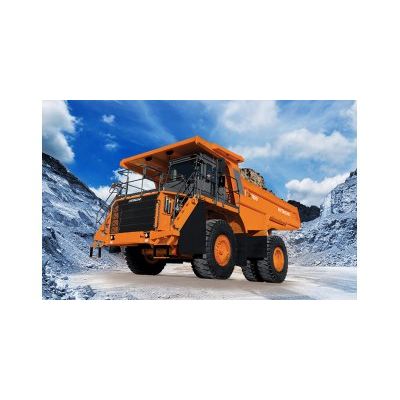

Hitachi - Model EH1100-5 -Smallest Mechanical Drive Rigid Hauler Trucks

• The rear hinge has been designed to allow the hinge pin to float when the body is in the fully lowered position. The weight of the body and payload is distributed across rubber body pads that are evenly spread across the length of the body railbox that rests on the truck frame.
• The EH1100-5 has a higher payload. The body now has a flat floor-plate for more control of material shed while dumping.
• Truck frame rails are connected laterally by a high-arching cross member. This structure is positioned behind the engine and allows for easy engine access.

• The cab features a new 265 mm (10.4 in.) LCD screen that doubles as an instrument panel and a backup camera monitor.

• The payload monitoring system is fully integrated for prompt reporting of tons moved, cycle times, cycle count and distance.
• The programming and diagnostic ports previously located on the rear wall are now positioned in the dashboard for easier access.
• The EH1100-5 truck systems communicate via CAN bus, which allows rear view camera monitoring through the LCD display and reduces the amount of wiring required throughout the truck.
• A closed-center hydrostatic power-steering system gives the operator smooth, precise control.

• Inside the HI-TECH ROPS/FOPS cab is a dashboard that positions controls within easy reach and provides excellent visual contact. The cab ROPS structure is now redesigned to meet the requirements of using the EH1100-5 as a water truck.

• Visibility from the cab is enhanced with added mirrors, cameras for blind spots, backup and tire lights, and brighter headlamps. The high level visibility improves safety and productivity.

• Double-wall construction of inner and outer steel panels produces a more structurally sound cab. A three-point rubber isolation-mount setup significantly reduces shocks, vibrations and noise, keeping operators more comfortable.

• The EH1100-5 features an ACCU-TRAC suspension that has an independent trailing arm for each front wheel. Both arms are supported by Neocon-filled struts that minimize stress and vibration.

• The trailing arm design allows energy to travel straight up, where it is absorbed by the strut, minimizing frame fatigue and twisting.
• Neocon-filled struts deliver a higher level of stability, control and isolation compared to struts filled with nitrogen and oil.
• Another upgraded improvement with the EH1100-5 are two body prop pins that replace the single prop cable, making it more efficient to prop up the body.
• The unique ACCU-TRAC suspension can improve tire life by up to 40 percent compared to suspended kingpin designs.
• Front suspension cylinders can be serviced quickly without removing them from the truck.
• The four-pin planetary gear runs at lower temperatures to extend lubricant life and increase the life of the gear itself, resulting in longer uptime.

• The EH1100-5 offers quicker refueling with a low pressure “Fast Fuel” option that uses the truck’s standard fuel tank.

• The previous “both side vertical ladders” have been upgraded to an improved access system that features inclined steps, making it easier and quicker to get on board.

• The brake accumulators are now positioned outside of the radiator support for easier service.

• The steering accumulator is closer to the center of the deck, and the RCB valve is now accessible from the deck for better serviceability. In addition, the EH1100-5 now features a service light on the front handrail, making it easier to see the coolant level and filters during maintenance checks.

• The EH1100-5 allows ground-level feeding of grease, hydraulic oil and engine oil for fast, simple topping-off. This optional Service Center can be installed with or without the Fast Fueling Option.

The lube system pump and battery switches, previously located on the deck, are now mounted on the support for easy access.

• The batteries are now inside the front bumper and accessible from ground level.
• The trailing-arm suspension allows the front struts to be removed and installed without removing the front brakes or tires.

• Uptime is increased with the wet-disc rear brakes, engineered and built for long service life in tough environments. The brakes are continuously oil cooled, with a dual-circuit design for added safety. The wet-disc rear brakes now come with an integrated parking brake.

• The transmission has been upgraded to the Allison H6620A with Shift Energy Management (SEM) system. The SEM system reduces engine torque during transmission shifts, delivering longer drivetrain life and increased operator comfort.
