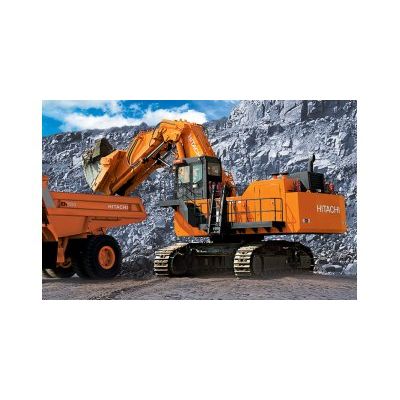

Hitachi - Model EX1200-6 -Mining Excavator & Shovel

SHARE

Just like the rest of the Hitachi excavators, the EX1200-6 (available in both front-shovel and backhoe configurations) has a rock-solid reputation. It is engineered to give you the flexibility to handle many different jobs. You get strong horsepower, an efficient engine, comfortable cab, advanced hydraulics, tough frame and powerful arm- and bucket-digging forces so you can get more work done every day. The EX1200-6 comes standard equipped with Hitachi’s Global e-Service remote machine management system, which gives you access to each on-site machine from a PC in your office.

Most popular related searches
mining excavator shovel
mining excavator
mining shovel
airborne dust
front shovel
air conditioner
lubricant system
filter element
hose reel
wear plate
Engine
  • Get more uptime from the efficient Cummins EPA Tier 2 diesel engine that’s one of the most fuel-efficient engines of all, plus is very eco-friendly.
Durable structure and undercarriage
  • Two grease-filled floating pins, at the boom top and at linkage, increase the sealing ability, extend pin life and reduce repair costs. Wear plates are provided on both sides of a boss at the arm top.
  • The travel devices are compact-designed to reduce damage for higher mobility, reducing downtime.
  • The center track frame of integral cast steel structure can avoid stress concentration and increase reliability.
  • Track links are enlarged to increase strength for higher durability and reliability especially on rugged ground.
  • You get rock-solid durability from a rigid box frame that resists bending and twisting forces, and provides great strength and balance to handle heavy digging and loading jobs.
  • The EX1200-6 provides you with an upgraded, more brawny undercarriage. The larger diameter swing bearing provides increased reliability and durability, plus improved stability.
  • Both standard and BE booms have thicker plate steel. The buckets are stronger and larger, and the refined mechanisms produce increased lift capacity and durability.
  • You can get optional full-length track guards that protect the tracks against rocks and other objects. In addition, wider track shoes and a longer undercarriage frame are available to improve flotation in soft conditions.
Hydraulics
  • You get flexible boom/swing modes. The boom- or swing-priority mode can be selected for higher production.
  • When swing angle is small in a cycle of digging, swinging and dumping, boom raise speed increases to reduce a cycle time. When swing angle is large in a cycle of digging, swinging and dumping, swing speed increases to reduce a cycle time.
  • The boom recirculation system efficiently recirculates oil in the boom circuit when the boom lowers, delivering more pressurized oil to the arm to increase arm-lowering speed
  • The oil cooler is separated from the radiator to effectively cool down hydraulic oil. This helps extend the service life of hydraulics.
Simple controls
  • The color LCD monitor displays operating and machine-event information, which adds to productivity and helps lower downtime with better, on-time maintenance.
  • The short-throw pilot control levers provide extremely precise and smooth boom and bucket control, requiring less effort and movement.
Comfortable cab
  • The multi-function, multi-language LCD monitor is easy to read and provides key data about the excavator. The Global e- Service mining system uses a data logging unit to record daily operating conditions and warnings. The monitor can be preset to indicate replacement intervals for engine oil, hydraulic oil and filters.
  • The standard remote rearview monitoring camera gives the operator wider vision of the work area and eliminates almost all blind spots.
  • The heated, multi-position, air-suspension seat travels 266 mm (10.5 inches), together or independently of the control console, allowing operators to customize their working environment.
  • The sturdy cab protects operators from falling objects. The cab’s top guard conforms to OPG Level II (ISO) specifications. The entire cab sits on a package of fluid-filled elastic mounts that reduce vibrations and deliver a more comfortable ride.
  • An optional slide ladder gives the operator even easier access to the cab and working platform.
Easy to maintain
  • The radiator and oil cooler are arranged side by side to increase cooling efficiency. This also reduces cleaning time and effort.
  • The auto dust ejector automatically ejects airborne dust and particles to keep filter elements clean and extend their replacement intervals.
  • An air conditioner filter is located next to the cab door behind the operator seat for easy cleaning and replacing.
  • An electric grease gun (pail can type) is provided standard with a hose reel for convenient lubrication of the swing circle and bucket pin.
  • The auto lubrication system is provided standard at the front attachment to simplify daily maintenance, except for the bucket pin and swing circle.
  • Delivery filters, newly added to the delivery side of hydraulic pumps, effectively protect hydraulic lines from accidents.
Remote Machine Management
  • With Global e-Service, an online machine management system, you can access each on-site machine from a PC in your office. You can get its operating information and location to increase productivity. Operating data and log are sent to a Hitachi server for processing, and then to customer and dealers. This system is available 24/7/365.

Driveline

  • Emission Rating Tier 2
  • Number Of Cylinders - Per Engine 6
  • Displacement 23.15 ltr, 1413 Inches³
  • Rated Speed 1800 rpm
  • Engine Output - Net 552 kW, 740 hp
  • Carrier Rollers - Each Side 3
  • Track Rollers - Each Side 8
  • Track Shoe Width 700 mm, 28 inches

Dimensions

  • Transport Length 15970 mm, 52 ft 5 in ft/in
  • Transport Height - Maximum 6860 mm, 22 ft 6 in ft/in
  • Overall Width 5380 mm, 17 ft 8 in ft/in
  • Track Length On Ground 5090 mm, 16 ft 8 in ft/in
  • Undercarriage Overall Length 6500 mm, 21 ft 4 in ft/in
  • Tailswing Radius 4850 mm, 15 ft 11 in ft/in
  • Ground Clearance 1020 mm, 40 inches
  • Width over standard tracks 4600 mm, 15 ft 1 in ft/in
  • Track Gauge 3900 mm, 12 ft 10 in ft/in
  • Dig height (mono) 13460 mm, 44 ft 2 in ft/in
  • Dump Height (Mono) 9080 mm, 29 ft 10 in ft/in
  • Max Digging Reach (Mono) 15350 mm, 50 ft 4 in ft/in
  • Ground level reach (mono) 15010 mm, 49 ft 3 in ft/in
  • Dig depth - 2.44m / 8`ft flat bottom 9260 mm, 30 ft 4 in ft/in
  • Dig depth (mono) 9380 mm, 30 ft 9 in ft/in

Capacities

  • Fuel Tank 1470 ltr, 388.3 gallons (US)
  • Hydraulic Tank 610 ltr, 161.1 gallons (US)

Performance

  • Ground Bearing Pressure 142 kPa, 20.6 PSI
  • Dipper Tearout 430 kN, 96668 lbf

Weights

  • Weight - Maximum 111500 kg, 245815 lbs
