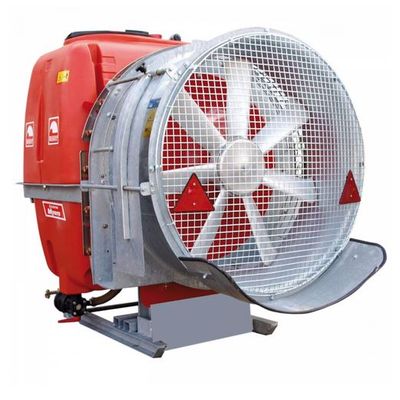

Hans-Wanner - Model D36/300-70 PE -Hitched Sprayer

SHARE

Hitched sprayer D36/300-70 PE with Axial blower and PE-tank. Stable, hot galvanised profile steel frame construction with optimal centre of gravity and a very close connection.


Most popular related searches
shut-off valve
axial fan blower
pressure filter
piston pump
blower
filter cleaning system
filter cleaning
manometer
pressure cleaning

Tank

300 Liter PE-Formbehälter mit Skala und Füllstandsschlauch, hydraulischem Rührwerk, Tanköffnung mit Einfüllsieb, Handwaschbehälter mit Auslaufhahn

Pump

Piston-membrane pump APS 71 - 70 l/min at 50 bar

Filter

Suction filter with automatic shut-off valve, central pressure filter with quick cleaning

Control unit

Mechanical operating unit – with part width section control, preasure adjustment and gauge (manometer 0-60bar), via bowden cables from the tractor operated

Blower Drive

two-stage gearbox with zero position

Blower

Axial-blower with an air capacity of approx. 45./60.000 m³/h

Nozzles

Single nozzle with drip stop can be swiveled and suppressible, nozzle inserts: Albuz ATR according to choice
