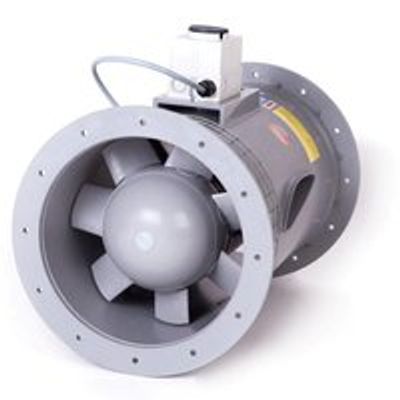

HLU - Model AX 58 -Axial Fans

FromHürner Luft- und Umwelttechnik GmbH

SHARE

Axial fans; can be used in all applications with small to high air volumes, with low pressure losses. also suitable, with optional accessories, for more demanding industrial applications, such as tank vapour extraction in the electroplating industry. optionally suitable for installation in and extraction from ATEX zone.

Most popular related searches

volume flow from 500 to 50000 m³/h
at a maximum pressure difference of 900 Pa
available in 13 nominal diameters from 200 to 1000 mm

Volume flow :500 to 50.000 m³/h
Pressure difference :900 Pa
Efficiency level :up to 83 %
Nominal diameters :13 nominal diameters from 200 to 1000 mm
Operating temperature :0 – 60 °C
Impeller material :PP, PPs, PVC, steel coated
Drive system :direct drive
Atex :optionally suitable for installation in and extraction from ATEX zone 2
Connection options :Flange connection

corrosion resistant
energy efficient
motor mounted outside the airflow
use of different motors (explosion-proof motors) possible
