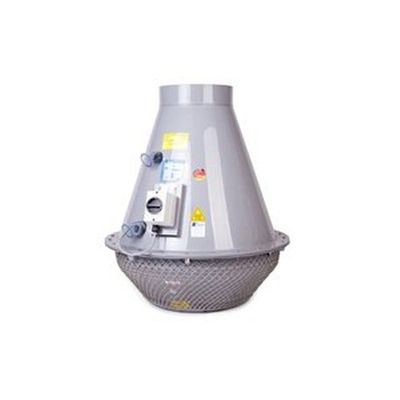

HLU - Model HF D 16 -Roof Fans
Roof Fans; can be used in all applications with medium air volumes. ideal for extracting digestors in buildings without ventilation centers. optionally suitable for installation and extraction from ATEX Zone 2 and 1.
Most popular related searches
- volume flow from 500 to 8,000 m³/h
- at a maximum pressure difference of 1,400 Pa
- available in 3 nominal diameters from 315 to 400 mm
- volume flow ;500 – 8,000 m³/h
- maximum pressure difference ;1,400 Pa
- nominal diameters ;3 nominal diameters from 315 to 400 mm
- operating temperature ;0 – 40 °C
- housing material ;PPs, PPs-el, PVC
- impeller material ;PPs
- drive ;direct drive
- Atex ;optionally suitable for installation and extraction from ATEX Zone 2 or ATEX Zone 1 in electrically conductive version
- execution ;Standard with repair switch or Ex terminal box, shaft gap with seal
- connection variants ;flange
- corrosion-resistant
- weatherproof
- safe drainage of rainwater
- compact design
- easy mounting on flange
- extensive range of accessories
- engine outside the airflow
- Use of different motors (Ex-motors) possible
