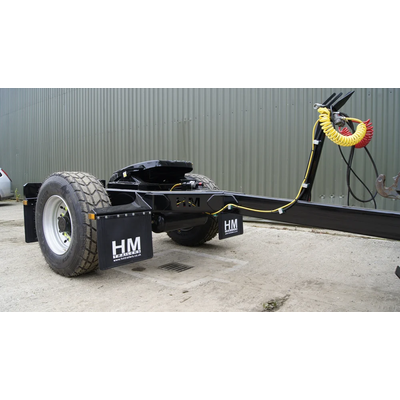

HM TrailersModel HMDLY -Dolly Trailers

SHARE

All sections made from a 355 grade material is used to form the chassis and drawbar. 420 x 180 commercial axles on all steel 100mm suspension form the basis of the dolly trailers. In either a single axle 10T model or a twin axle 20T version. New 20T Jost fifth wheel plates are used for both the single axle 10T & double axle 20T models.

Most popular related searches
HMDLY 20
  • 20T Capacity

  • 2 x 127mm Round axles

  • 420 x 180 High speed axles

  • 200 x 100mm RHS chassis

HMDLY 10
  • 10T Capacity

  • 1 x 127mm Round axles

  • 420 x 180 High speed axles

  • 200 x 100mm RHS chassis

  • High speed axles
  • L.E.D lights
  • 100mm Sprung suspension
  • Super single wheels 385/65R 22.5
  • Heavy duty 50B weld on eyes
  • Wheel nut indicators
  • Hydraulic pipe work storage
  • Air/oil twin line braking
  • ABS with air brakes
  • Hydraulic load sensing valve
  • Mudguards & mudflaps
  • Flashing beacon
  • Heavy duty cast fifth wheel
  • Custom colour
  • Wheel & tyres selection
