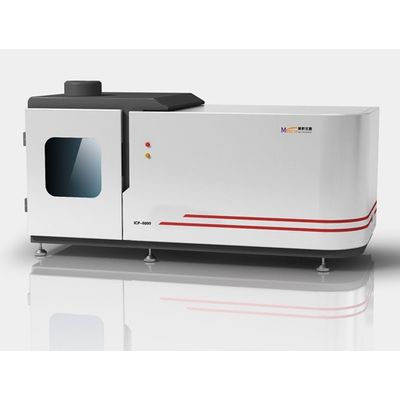

Macylab - Model ICP-6800S -Home-Inductively Coupled Plasma Emission Spectrometer (Petrochemical)
Petrochemical Inductively Coupled Plasma Optical Emission Spectrometer(ICP6800S) is a professional instrument for the petrochemical industry launched by Macylab Instruments. It can be used to determine more than 30 elements in crude oil, mainly for Fe.Na.Mg.Ni. V.Ca. Pb.Mo.Mn.Cr.Ca.Ba.As; also can be used to measure iron, manganese, lead, silicon in gasoline ,and the Wear elements of additive in lubricating oil, it also can be applied for multielement determination in base oils; for the determination of sodium in formaldehyde and the determination of oil field tracer.
Most popular related searches
ICP emission spectrometer
inductively coupled plasma spectrometer
ICP-OES
coupled plasma optical emission spectrometer
emission spectrometer
optical emission spectrometer
spectrometer
flow control
optical spectrometer
flow meter
CONTENT: RANGE
- Shipping/Storage Ambient Temperature: 15℃-25℃
- Shipping/Storage Relative Humidity: ≤70％
- Atmospheric pressure: 86-106 kPa
- Power Supply: 220±10V 50-60MHz
- Working Humidity: ≤70％
- Working Temperature: 15℃-30℃
- RFPower technical parameter：
- Circuit type: solid-state RF power supply, with function of automatch
- Frequency: 27.12MHz±0.05％
- Frequency Stability: ＜0.1%
- Power Output: 800W—1500W
- Power Output Stability: ＜0.3%
- Escaped RF radiation: 30cm away from the instrument, electric field: E﹤2V/m
- Output working coil inner diameter ：25mm
- Torque tube: Three concentric, external diameter 20mm
- Coaxial nebulizer:Outer diameter 6mm
- Double barrel atomizing chamber: Outer diameter 34mm
- Plasma Argon Flowmeter:(100-1000)L/h (1.6-16L/min)
- Auxiliary Argon Flowmeter:(10-100)L/h (0.16-1.66L/min)
- Carrier Argon Flowmeter(10-100)L/h (0.16-1.66L/min)
- Oxygen Flowmeter:(0-100)ml/min (30-50ml/min)
- Pressure Maintaining Valve(0-0.4MPa)
- Cooling Water:Temperature: 20-25?, Rate of Flow>5L/min, Hydraulic Pressure>0.1MPa
- Optics：Czerny-Turner type
- Focal length: 1000 mm
- Grating: Ion Beam Etching Holographic Grating, 4320L/mm
- Reciprocal linear dispersion: 0.26nm/mm
- Resolution:≤ 0.005nm (4320 line grating)
- Wavelength range: 4320 line grating:(180nm～435) nm
- Minimum pace of stepping motor: ≤0.0006 nm
- Exit Slit:10μm；Entrance Slit:8μm
- Photomultiplier tube specification: R293
- Negative HV on PMT: 0-1000V;Stability: ＜0.05%
