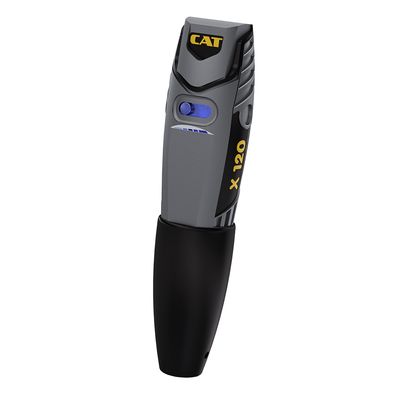

CAT - Model X 120 -Homogenizer
Hand-held drive motor to homogenize small volumes (0,2ml-1500ml). Of course it can be used stand mounted as well like all our drive motors. Compatible with the dispersing tools T6/T10/T17.
Most popular related searches
- Hand-held
- High speed (up to 33000rpm)
- Food safe stainless steel dispersing tools
T=Shaft with PTFE Bearing. This shaft type is used for standard application. (For liquid media like water, oil, etc.). Dry operation is not permissible.
- Speed range [1/min]: 10,000 - 33,000
- Speed range [1/min] 115V-Version: 5,000 - 32,000
- Motor power [W]: 140
- Digital display type: -
- RPM display: -
- Volume, max. (H2O) [l]: 2
- Flow rate (H2O) [L/min]: -
- Chamber cooling: -
- Inlet and outlet connectors, diameter [mm]: -
- Cooling chamber connectors, diameter [mm]: -
- Noise without tool, max [dB]: 86
- Dispersing tools: T 6 , T 10, T 17
- Power supply [V]: 230VAC 50Hz, 115VAC 60Hz
- Weight [kg]: 0.75
- Height [mm]: 220
- Diameter [mm]: 53
- Protection class according to DIN EN 60529: IP20
- Overheat protection: Yes
- Overload protection: Yes
- Motor type: DC
- Shaft rotation: CCW
- Operation mode: Short-term operation
- Certification: CE
