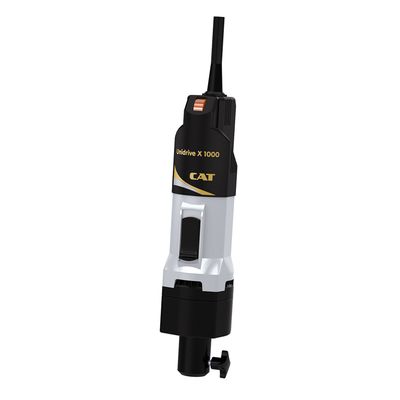

CAT - Model X 1000 -Homogenizer
Our universal drive. Due to the wide speed range and the compatibility with many of our tools, this drive-motor covers a huge variety of different dispersing tasks. Compatible with the dispersing tools T6/T10/T17/T20/G20.
Most popular related searches
- Wide speed range
- Food safe stainless steel tools
- Ceramic sealed tools available
T=Shaft with PTFE Bearing. This shaft type is used for standard application. (For liquid media like water, oil, etc.). Dry operation is not permissible.
G=Shaft with slide seal ring. This shaft type is excellent for applications with aggressive respectively abrasive media and when pressure is applied.
- Speed range [1/min]: 4.000 - 33.000
- Speed range [1/min] 115V-Version: 4.000 - 33.000
- Motor power [W]: 1,050
- Digital display type: -
- RPM display: -
- Volume, max. (H2O) [l]: 5
- Flow rate (H2O) [L/min]: -
- Chamber cooling: -
- Inlet and outlet connectors, diameter [mm]: -
- Cooling chamber connectors, diameter [mm]: -
- Noise without tool, max [dB]: 78
- Dispersing tools: T 6, T 10, T 17, T 20, G 20, DK 30
- Power supply [V]: 230VAC 50Hz 115VAC 60Hz
- Weight [kg]: 2.1
- Height [mm]: 290
- Diameter [mm]: 75
- Protection class according to DIN EN 60529: IP20
- Overheat protection: Yes
- Overload protection: Yes
- Motor type: DC
- Shaft rotation: CCW
- Operation mode: Short-term operation
- Certification: CE
