Liaocheng Xince Steel Pipe Co., Ltd

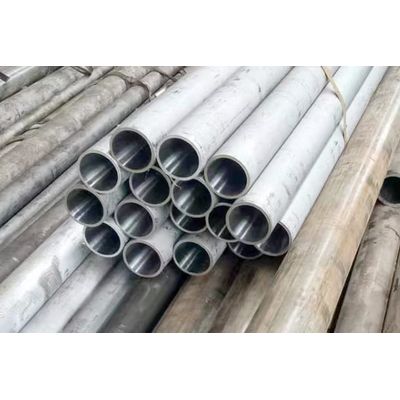

Xince - Model TP 316 - 316L -Honed Hydraulic Cylinder Tubes
316 Hydraulic Cylinder Tubes, TP 316 Honed Tubes, TP 316 Hydraulic Cylinder Tubes, TP 316 Stainless Steel Hydraulic Cylinder Tubes,TP 316L Hydraulic Cylinder Tubes, TP 316L Honed Tubes, TP 316 Stainless Steel Hydraulic Cylinder Tubes, SUS 316TKA Cylinder Tubes.
Most popular related searches
STANDARDS
- DIN 2931: Seamless Precision Steel Tubes
- EN 10305-1: Steel Tube for Precision Applications.
- EN10305-2: Cold Drawn Steel Tubes for Precision Applications
- GB 3639: Seamless Cold-drawn or Cold-Rolled Steel Tubes for Precision Apllications
- Inner Diameter Size: 20-1000mm
- Length: Max14m
- Process: Cold-drwan,Honed or Roller Burnished
- Straightness: 0.3/1000mm
- Roughness: 0.3µmMax
- Tolerance: Iso H8 H9
- Steel Grade: TP 316, 0Cr17Ni12Mo2, SUS 316 TKA, TP 316L, 0Cr18Ni12Mo2Ti, SUS 316L, or to orders.
- Application: TP 316 316L Honed Hydraulic cylinder tubes used for Stainless Steel Cylinders, Hydraulic Oil Cylinders, Auto parts, Motorcycle accessories, Engineering machines, Packaging machines, Woodworking machines, Textile machines, Printing and Dyeing machines, Die-casting machines, Injection Molding machines etc.In comparison with 304 stainless steel Cylinder Tubes, 316 stainless steel cylider tubes has lower content of Cr, and higher content of Ni and Mo (2%-3% higher), thus In sea water and brine or containing chloride environment,it has higher corrosion resistance and is applicable to Marine equipment, chemical equipment and medical equipment
- Delivery Conditions: +C(BK) or to orders, Solid Solution,Aging
