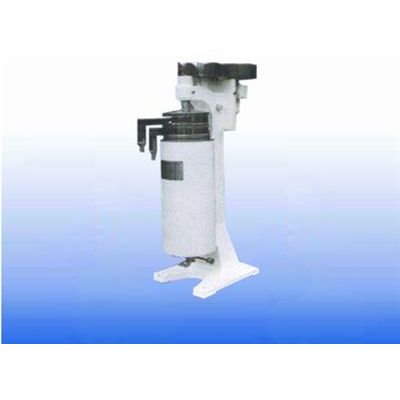

Hong Ji - Model HJJ - GF80 -Pipe Type Centrifuge
This type of machine is mainly used for the separation of difficult separation of various suspension, emulsion, it is especially applicable to dilute, fine particles, the proportion of poor little solid liquid, liquid - liquid solid separation, users can according to the separation characteristics of the material, the freedom to choose different drum. The model can replace the cup type, tube type centrifuge and other experimental and production testing equipment, but also to meet the pharmaceutical, chemical, biological, metallurgy, environmental protection, paint and other industries in small quantities, many varieties of small specifications production.
Most popular related searches
solid-liquid separator
solid-liquid separation
high speed tubular centrifuge
liquid liquid separation
high speed centrifuge
centrifuge
liquid separation
tubular centrifuge
solids separation
centrifuge tube
The machine has the advantages of small size, easy operation, high separation factor, low noise, low noise, easy maintenance and convenient operation. Used in laboratory, laboratory, hospital preparation and so on. The machine can be equipped with temperature control, speed control device to meet the different needs of customers, the machine all contact parts are stainless steel.
working principle:
The separator is composed of main body, transmission system, hydraulic system, drum, set composed of a liquid inlet system. The upper part of the drum and the main shaft is connected with the bottom is flexible, damping sliding bearing. When the equipment works around its own axis high speed rotating drum, the formation of strong centrifugal force field. Material from the bottom into the fluid system into the liquid injection nozzle, the centrifugal force in the rotary drum forcing liquid material along the inner wall of the drum to flow, and because of the different liquid group of density difference and hierarchical.
GF: density of the liquid phase to form the outer ring, small density of liquid phase to form an inner ring, flow to the upper drum respective a liquid outlet, trace the deposition of solid on the drum wall, to be shut down after manual unloading.
GF type for the separation of various emulsion, especially for in the second compared to poor little liquid liquid separation and have small amounts of impurities in the liquid solid separation, for example: Transformer cry oil, turbine oil, lubricating oil, paint, oil, all kinds of powder materials, oral liquid and other physic liquor separation, blood plasma cell separation, edible oil, placenta soaking liquid, tea polyphenols, soybean phospholipid concentrate refining, oil and water share and sewage treatment.
Characteristics of tubular centrifuge
My company branch technical personnel in the high speed centrifuge technology, continuous exploration and efforts, and finally make our company a few key technology in the domestic industry in a leading position.
First, high speed tubular centrifuge compared with the domestic counterparts, the highest speed, the separation factor is the biggest, the best separation effect. The type 105 machine as an example, our centrifuge maximum speed of 19000 rpm, the highest speed is the same type of machine in domestic. Compared with the domestic similar models, the same separation effect, I had the highest tube centrifuge production; the same output, the best separation effect.
Second, the highest speed, the lowest noise. Our tube centrifuge operation noise is only 68 dB, far below the national standard of 88 dB and intuitive reflect our tube centrifuge operation smoothly, the machining precision and in the production and operation reliability.
Third, the same tube type centrifuge, due to the different users and different materials, users in the use of the actual results also have certain differences. Over the years, my company`s scientific research personnel in-depth customer, and customer related personnel to explore, practice, summary. For different customers, different material status, in the production of a corresponding adjustment of the centrifuge, so that the best integration of materials and the centrifuge, the user production process more efficient and practical.
Fourth, G105, g125, G150 type body for general body series is the latest development of a product, the prominent features of the series of products is G105, g125, G150 type body is universal, making it in a body, can according to production needs to replace the separation drum and the liquid collecting part, not separately purchase machine can realize different separation purposes and yield.
