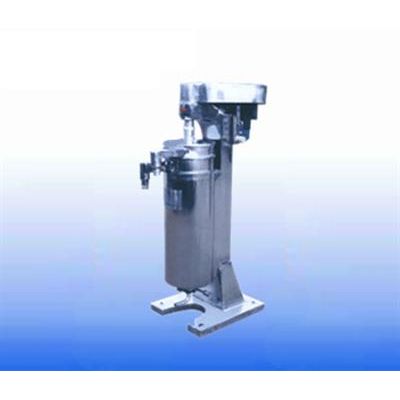

Hong Ji - Traditional Chinese Medicine Clarifying Type Tubular Centrif

Characteristics:

1. Most of the traditional Chinese medicine is the use of animals, plants and minerals as the source of the use of liquid extraction process, and then take the liquid and the liquid solid separation. The medicine source for animals and plants, so the leaching containing proteins, polysaccharides and colloid colloid material was inevitable. Tubular centrifuge
2. By the animal and plant medicine source leaching, drug-induced solid formed filter cake resistance is large, but has a higher compressibility than, so in filtration and separation, the more difficult the increase of filtration pressure, are more likely to make cake specific resistance is greatly increased.
3. The liquid in the presence of certain soluble protein and polysaccharide substances will gradually merge into a large molecule, a gel material is difficult to filtration and separation, if appropriate conditions will continue to release, the filtered fluid and the emergence of some floc, affect the liquid clarity, product quality decline.
4. If the general industrial filter cloth as a filter medium, the filtrate could not clear, such as slightly increased pressure filtration, on the one hand will make the filter cake resistance increased, decreased rate of filtration; on the other hand, some jelly is extremely easy to deformation and through the gap of the filter cloth. Such as the use of disposable filter media (such as PP or PE filter, etc.) and is very easy to plug, and consumes a large, high operating costs. Therefore, the use of conventional methods in the selection of the filter media has a certain degree of difficulty. Solid-liquid separator
5. If the solid phase (drug residues) content is high, and the liquid solid two phase density difference is small, such as the use of three foot filtration (sedimentation) centrifuge can only discharge the wet filter slag, the loss is too large. Currently some factory of traditional Chinese medicine liquid settling separation still stays in the only gravity sedimentation method (i.e. the natural settlement, settlement time is very long (2 days, 3 days to more than 10 days). At the same time there will be 15% - 20% of the liquid can not be recycled, the yield is not high, the loss too.

Chinese medicine clarifying centrifuge tube is Liaoyang Hongji Machinery Co. Ltd. a tube separator in series. It is designed for traditional Chinese medicine products industry, plant extraction industry design of a model. The machine loss effective ingredients of the medicine, shorten the settling time, improve the clarity, increase production, can effectively solve the above problem. The model is divided into two types of clean and ordinary type, suitable for different users. Products fully able to meet the requirements of GMP certification. Because the traditional Chinese medicine oral liquid containing small features such as sugar, floc, fine solid particles and solid-liquid proportion difference. Through the machine to liquid impurities in the separation, to achieve the effect of clarification. Used to separate all kinds of difficult suspensions. In particular, the concentration of small viscosity is large, solid particles are fine, and the solid-liquid separation is very small. Horizontal spiral unloading settling centrifuge
