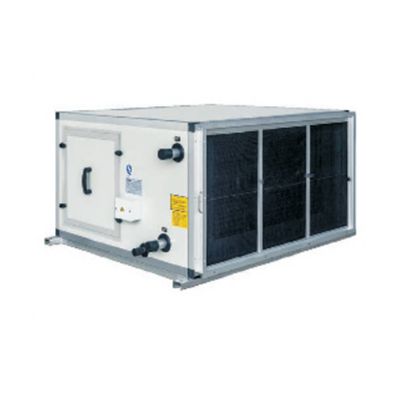

Honming - Cabinet Type Air Handling Unit
The cabinet type air handling unit series are divided into four series of products: HM-DG hanging cabinet, HM-WG horizontal cabinet, HM-LG vertical cabinet, and HM-SL remote jet. This series of products have the advantages of strong cooling capacity, high efficiency, low noise, and durability. It is an ideal product for central air-conditioning system with high requirements of air volume, cooling capacity, humidity and cleanliness. It is the application extension and important supplement of the combined air conditioner. Each model of the unit has 4 rows, 6 rows and 8 rows of coils, and there are 8 pieces/inch, 10 pieces/inch, 12 pieces/inch heat exchangers with different cooling capacities for selection. Reliable quality, stable performance
It is a central air-conditioning terminal device installed in various high-end hotels, hotels, shopping malls, office buildings, hospitals, airports, subway stations, convention and exhibition centers and other hidden spaces.
- The chassis adopts aluminum alloy frame double-panel structure, the panel adopts high-quality color steel plate, and the interlayer is filled with thermal insulation materials. It has a compact structure, beautiful appearance, anti-condensation, easy maintenance, and low noise.
- The fan adopts a front-curved multi-blade double-suction centrifugal fan. After dynamic and static balance correction, the fan has high efficiency. It is equipped with imported bearings, damping system and soft connection device. The unit runs smoothly and quietly.
- The heat exchanger adopts aluminum fins and high-quality copper pipes as a whole set of fins. After the second flanging process and mechanical expansion of the pipe, it ensures close contact, high heat exchange efficiency, low wind and water resistance, and easy cleaning.
- (Product standard: JB/T9066-1999)
