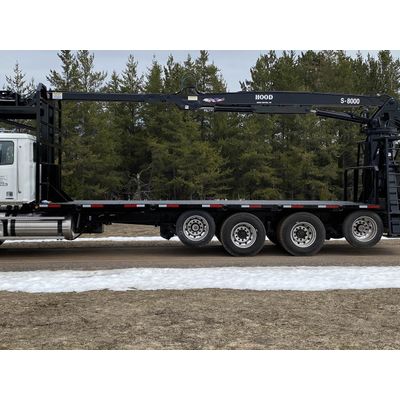

Hood - Model 8000 Series -High-Pressure Boom Loader

The Hood S-8000 Series high-pressure knuckle boom loader provides an efficient one-man solution to material-handling challenges. Move pole-length trees or utility poles ~ or any job calling for extra lift power or multiple heeling accommodations.

Most popular related searches

high-pressure pump

piston pump

control valve

pressure control valve

LIFT CAPACITY

14,800 pounds @ 10 feet radius

BOOMS

Standard boom length 23 feet or 25 feet
Main and knuckle boom sections are fabricated high tensile steel and reinforced at all stress points
3” diameter pivot pins made from high strength yield steel

Hydraulic system-

main boom cylinder: 6" bore x 42" stroke x 2-1/2" rod
jib boom cylinder: 6" bore x 30" stroke x 2-1/2" rod
all cylinder barrels are heavy wall tubing
reservoir: 62 gallons with oil cooler (standard equipment)
continuous rotation high pressure manifold
Pilot Control Valves

Stabilizers-

pad size: 18 inches by 18 inches
spread: 14 feet at ground level

cylinder size:

3.5 inches with bore / 40 inch stroke by 2 inch rod both stabilizers are telescopic
individually controlled stabilizers
automatic load locks maximize stability on uneven terrain
stabilizers easily operated from main control position

Filters-

in-line high pressure

Pumps-

on-demand piston pump
working pressure: 3900 PSI
pilot control system standard

Hoses-

all pressure hoses are constructed of 4-wire braided hose
high pressure tubing is used in non-flex areas

Frame Structure-

octagon construction: fabricated high-tensile steel
Operators Platform-
features open grate steel flooring and leg guard for safety

Swing Motor(s)-

planetary swing drive gearbox with a fail safe brake and large 30" turntable bearing with optional twin swing gearboxes

Weight-

8,600 pounds
