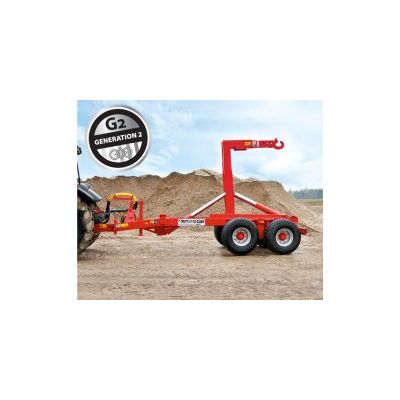

Bigab - Model 10 - 14 G2 -Hook Lift Trailer
BIGAB 10 - 14 G2 is a new Generation of hook lift system. The tipping angle is 60 % which is an increase of 12 degrees to the previous model. The tipping speed is significantly improved. The trailer tips in half time of previous model. When tipping is done you simply lower it through the float/free flow position down to transport position.
The G2 trailer has been equipped with a strong frame lock/bogie blocking for safer and quieter hooking. A powerful duplex hydraulic lock for the frame is standard. The trailer is equipped with bolted drawbar for increased flexibility. The chassis is fully shot - blasted painted in two - component paint for higher UV PROTECTION. Makes the paint harder with lasting glow.
BIGAB 10 - 14 G2 is the model which meets the quality and equipment availability demands of the professional operator. Even though flexible, because of its design, this trailer has maximum strength and rigidity in terms of deformation and twisting. It remains completely stable during both tipping and hooking operations. It s equipped with a sturdy pendulum bogie with strong hubs and eight-hole wheel mountings.
- Wheel dimension 500/50 - 17
- Requisite tractor hydraulics: 1 brake outlet 3 double action
- Oil volume: Minimum available oil volume, with full system (L) 23
- Chassi weight: Standard equipment (Kg) 2550
- Chassi lenght (mm) 5700
- Width across wheels (mm) 2300
- Total weight (Kg) 14300
- Max load including container bridge (Kg) 11750
- Max load during container bridge exchange (Kg) 10000
- Load on tow eye: Depending in the position of the container (Kg) 1600-2300
- Max tipping capacity (Kg) 11750
- Max working pressure (MPa) 21
