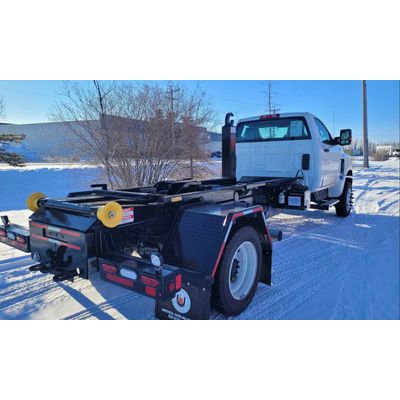

Ampliroll - Model AL 90 Series - 13,000 LBS -Hook Lift Truck
13,000 lbs hoist designed to handle containers between 9` and 14` of length. Universal Handling Equipment is a certified Ampliroll Hooklift dealer. Proud to offer customers sturdy, long lasting hooklift equipment to fit a wide range of projects.
Most popular related searches
BODY CONSTRUCTION
- ASTM A 514 Alloy Steel: Jib
- ASTM A 514 Alloy Steel: Central Arm
- ASTM A 514 Alloy Steel: Tilting Frame
- ASTM A 572 Alloy Steel: Subframe
HOOK HEIGHT
- Standard: 36"
- Optional: 54"
HYDRAULIC
- Pump: Axial piston, 5,700 psi, 7 GPM @ 1,200 RPM, Standard - SAE 7/8th Shaft
- Controls: Electric in cab or cable
- Reservoir: 7 gallons
- Filter: 10 micron, return line with replaceable cartridge
- Max Operating Pressure: 4,800 psi
- Hoses, Tubes and Fittings: all JIC/SAE specifications
PAINTING
- Standard: Black
- Custom: Custom Colours available upon request
- Specification data on this website is provided for informational purposes and is not guaranteed to be accurate, may contain errors, and is subject to change without notice.
BODY OPTIONS
- Additional LED Work Lights
- Back-Up cameras
- Pintle plate and hook
- Variety of tarp systems available
FENDERS
- Plastic
- Aluminum
- Steel
HOOK HEIGHT
- Optional adjustable hook height
PAINTING
- Custom colours available upon request
TOOLBOXES
- Plastic
- Aluminum
- Steel
