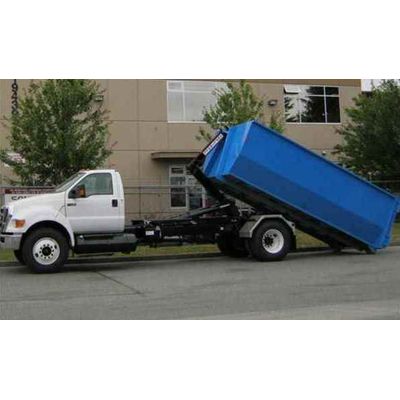

Ampliroll - Model AL 90 Series - 18,000 LBS -Hook Lift Truck
18,000 lbs hoist designed to handle containers between 10` and 17`6" of length.Universal Handling Equipment is a certified Ampliroll Hooklift dealer. Proud to offer customers sturdy, long lasting hooklift equipment to fit a wide range of projects.
Most popular related searches
BODY CONSTRUCTION
- ASTM A 572 Alloy Steel: Jib
- ASTM A 572 Alloy Steel: Central Arm
- ASTM A 572 Alloy Steel: Tilting Frame
HOOK HEIGHT
- Standard: 54"
- Optional: 36"
HYDRAULIC
- Pump: Axial piston, 5,700 psi, 11 GPM @ 1,200 RPM, Standard - DIN Shaft or Optional SAE 7/8th Shaft
- Controls: cable operated valve
- Reservoir: 12 gallons
- Filter: 10 micron, return line with replaceable cartridge
- Max Operating Pressure: 4,200 psi
- Hoses, Tubes and Fittings: all JIC/SAE specifications
PAINTING
- Standard: Black
- Custom: Custom Colours available upon request
Specification data on this website is provided for informational purposes and is not guaranteed to be accurate, may contain errors, and is subject to change without notice.
BODY OPTIONS
- Additional LED Work Lights
- Back-Up cameras
- Pintle plate and hook
- Variety of tarp systems available
FENDERS
- Plastic
- Aluminum
- Steel
HOOK HEIGHT
- Optional adjustable hook height
PAINTING
- Custom colours available upon request
TOOLBOXES
- Plastic
- Aluminum
- Steel
