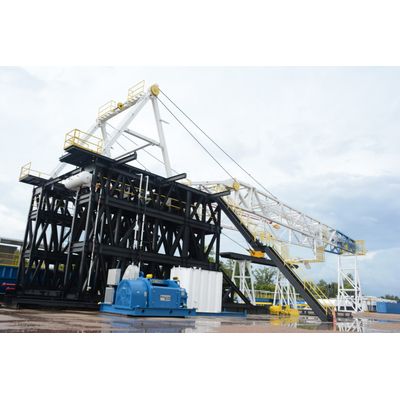

BHL - Model 1500HP DC X 750,000 lbs -Hook Load Land DC Drilling Rig
Mast: 142′ x 750,000 lbs. Cantilever (New). Substructure: Box-on-Box (New). Mast and Substructure AP/ 4F, 4th Edition Monogrammed and Certified, NEW. Top Drive: NOV TDS 11S 500 Ton. Rig Skidding System: (New) – Included. Drawworks: 1500HP.
Drill Line: (New) 5,000 ft Type 1 %” RRLI, EIPS, IWRC.
Most popular related searches
- Deadline Anchor: (New) Hercules Load Capacity 750,000 lbs. on 12 Lines Traveling Assembly: (Refurbished)
- Block: 400 Ton
- Hook: 400 Ton
- Rotary Equipment: (Refurbished) Swivel: 400 Ton
- Kelly: 5 “, 40 ft. Hexagonal, Rotary Table: 37½”
- Mud System: (2) 1600HP Triplex; Rating 5000psi
- Active Tank Capacity: 1000 BBLs Total. 1000 BBLs Reserve Generator Units: (3) CAT Engines 3512
- SCR House: (New) (3) Generator Modules x (4) SCR Bays
- Auxiliary Equipment & Storage (All New)
- Instrumentation, Control and Recording Equipment
- BOP and Well Control Equipment (Refurbished)
- 5,000 psi Annular; 5,000 psi Single Ram;
- 5,000 psi Double Ram; 5,000 psi Drill Spool Mud Gas Separator: 48″ Diameter x 20′ High
