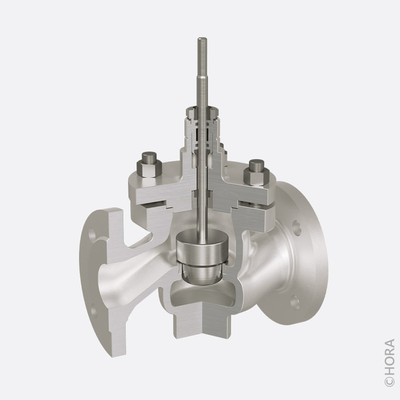

Hora Holter - Heavy Duty Control Valve
Heavy Duty: Precision at Temperatures from -50 °C to 550 °C and Pressure drops up to 200 bar. Designed for the precise regulation of media in demanding industrial and power plant processes, our Heavy Duty series shut-off and control valves are expertly engineered for applications with high pressure and temperature requirements. Built to withstand temperatures ranging from -50 °C to 550 °C and pressure drops up to 200 bar, these valves are made from high-performance materials and feature a robust construction. Their design focuses on longevity, optimised operating costs, and minimal downtime. We’ve thoughtfully designed the Heavy Duty series so that technicians can easily access and replace high-wear components when needed.
Most popular related searches
control valve
shut-off valve
industrial gas
industrial process plant
hydraulic pneumatics
electric actuator
pneumatic actuator
- Medium: Water, Steam, Natural Gas, Hydrogen, various
- Nominal size: DN 15 - DN 600 // NPS 1/2 - NPS 24
- Pressure Rating: PN 16 - PN 250 // Cl 150 - Cl 1500
- Maximum Differential Pressure: up to 200 bar
- Total Pressure Reduction Stages: 5
- Controlled Pressure Reduction Stages: 3
- Temperature Range: -50 °C to 550 °C
- Body Material: 1.0619+N, 1.7357, 1.4408, 1.6220+QT
- SA-216WCB, SA-217WC6, SA-351 CF8M
- Kvs: 0,01 m³/h - 6300 m³/h
- Leakage Class: EN 1349 – Seat Leakage VI G 1 (bubble-tight) // up to EN 12266-1 - A
- FCI 70-2 - VI // MSS-SP-61
- Connection: Flange, Welded Ends (EN, ASME)
- Design Type: Straight-through, Angle, Axial
- Actuators: Electric, Pneumatic, Hydraulic, Manual
- Certification: CE, UKCA, ATEX, CRN, SIL, ASME, TSG, ISO 4126-5
