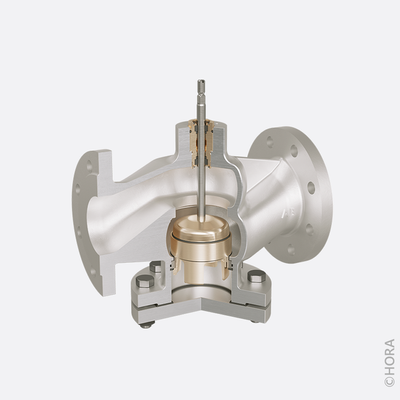

Hora Holter - Standard Duty Control Valve
From regulating hot and cold water in building systems to controlling process media in industrial applications, our Standard Duty series offers maximum flexibility, reliability, and cost-efficiency. Engineered for a range of applications, these valves provide complete sealing, precise control, and exceptional durability. With suitability for temperatures from -15 °C to 350 °C and pressure differentials up to 4 bar, they perform reliably under varying conditions. Thanks to their modular design, with a choice of housing materials and trim designs, our valves adapt seamlessly to your needs.
Most popular related searches
control valve
shut-off valve
cooling system
building water system
building control
electric actuator
building water
pneumatic actuator
water data
- Medium: Water, Water/Glycol
- Nominal size: DN 15 - DN 300
- Pressure Rating: PN 6 - PN 25
- Maximum Differential Pressure: up to 4 bar
- Total Pressure Reduction Stages: 1
- Temperature Range: -15 °C to 350 °C
- Body Material: CC499K, EN-JL1040, EN-JS1024
- Kvs: 0.63 m³/h - 1600 m³/h
- Leakage Class: EN 1349 – Seat Leakage VI G 1 (bubble-tight)
- Connection: Flange, Threaded (EN)
- Design Type: Straight-through
- Actuators: Electric, Pneumatic, Manual
- Certification: CE, UKCA
