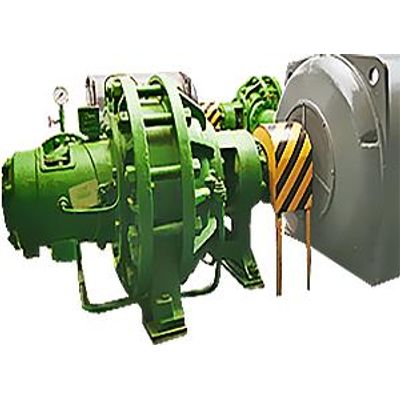

Ganz - Model BD -Horinzontal Shaft Sewage Pump

The pump consists of two parts namely the foot type pump housing with pressure chamber and the rotor carried in overhanging ball bearings.

Non-aggressive household, industrial and slaughterhouse sewage containing also coarse-grained contaminants and fibrous materials. Max. density: 1300 kg/m3. The silt content may not exceed 10% by volume.

Municipal and industrial sewage treatment plants.

Teflon-cord-packed or mechanical stuffing box.

Deep-groove ball bearing or self-aligning roller bearing at one side and two angular-contact ball bearings in a face-to-face arrangement or a double-row self-aligning ball bearing at the other side, the choice being dependent upon the pump size.

• Impeller, covers with stuffing box and suction branch, pump casing: cast-iron.
• Wearing ring, base bushing, water seal ring: nonferrous metal.
• Shaft: carbon steel.
• Shaft sleeve: corrosion-resistant steel.
