HK Lee Hing Industry Co., Limited

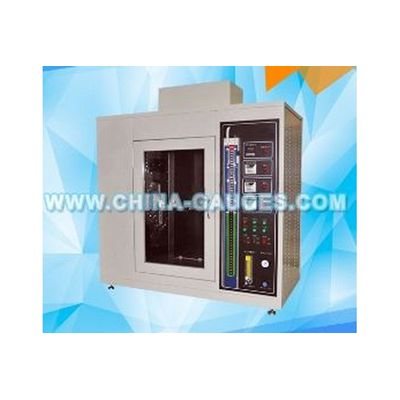

HK - Model LX-HV19 -Horizontal and Vertical Flammability Tester
Horizontal and Vertical Flammability Tester is suitable for measuring and evaluating the combustion characteristics of plastic materials. It is designed and made based on the America UL94 standard the combustion characteristics’ testing of plastic materials used for device and equipment parts. It tests the horizontal and straight combustion characteristics of plastic parts used for device and equipment, and equipped with gas flow meter to adjust size of flame.
Most popular related searches
gas flow meter
gas flow monitoring
flammability testing
gas flow regulation
gas pressure regulator
flow regulation valve
flow meter
gas valve
flow regulation
pressure regulator
- Cabinet capacity : ≥0.5 cubic meters, with glass watch door
- Ignite time : 0~99 minutes and 99 seconds can be set
- After flame time : 0~99 minutes and 99 seconds can be set
- Residual burn time : 0~99 minutes and 99 seconds can be set
- Timer : 0~99 minutes and 99 seconds can be adjusted, burning time can be set, and burning duration can be recorded. Burning angle : 20°,45°,90°(equal to 0°) can be adjusted
- Burner size parameter : Nozzle diameter Ø9.5±0.3mm, nozzle effective length is 100±10mm, with air adjust hole.
- Flame height : It can be adjusted from 20mm to 175mm according to the standard requirement.
- Product feature : It is equipped with lighting device, air extracting device, gas flow regulating valve, product feature gas gauge, gas pressure regulating valve, gas flow meter, form U gas manometer and sample jig
- Power : AC 220V, 50 Hz
