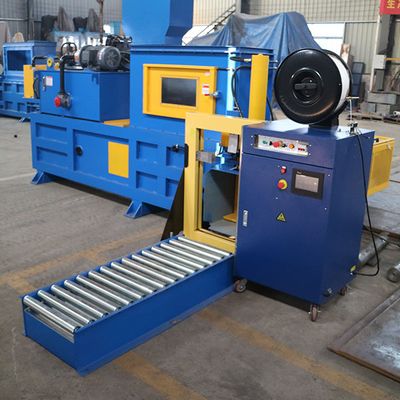

Skbaler - Model PP - HAT5050T20-DR -Horizontal Auto Tie Baler
PP auto tie baler HAT5050T20-DR refers to dual ram PP strapping auto tie baler machine, which is best suitable to light and medium duty applications. PP strap is the most economical type of plastic strap in the market. The PP auto tie baler is automatically compressing, ejecting and strapping, greatly improving your work efficiency.
Main features of HAT5050T20-DR
Compared to steel wire, PP strapping is much cheaper for tying the bales. Hence the dual ram PP strapping auto tie baler is a better choice to help you to save costs. HAT5050T20-DR equips with PLC controlled with screen display which is good for operating and inspecting the running statue of the machine. Safety interlock is for ensuring operator’s safety. Air cooling or water cooling is useful for lowering the temperature of the baler. Moreover, OEM/ODM services are available as well.
PP auto tie baler machine can produce a standard bale size of 500*500*500mm with 20ton hydraulic power. Adjustable bale weight ranges from 40 to 70kg.
The machine size is 3600*3850*2000mm, which is a small footprint especially in the limited room or warehouse. It is easy to feed the materials into 800*440mm opening. The finished bales will be strapped with 3~5 PP ties. A fast cycle time of 21 seconds. Save your valuable time in the long term.
- Model: HAT5050T20-DR
- Feed Opening (L*W)mm: 800*440
- Bale Size (W*H*L)mm: 500*500*500
- Bale Weight (paper)kg: 40-70
- Total Force ton: 20
- Main Motor kw/hp: 7.5/10
- Machine Size (L*W*H)mm: 3600*3850*2000
- Machine WT. ton: 4.5
