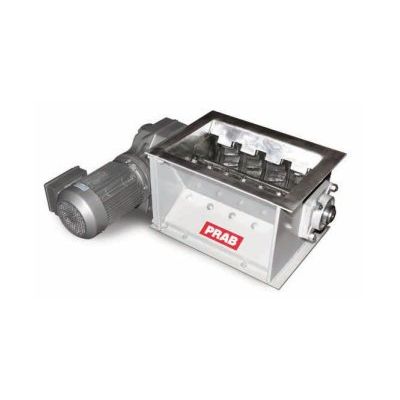

PRAB - Horizontal Axis Crushers

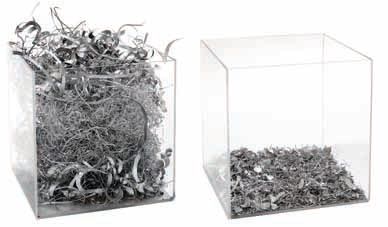

Now you can process low volumes of stringy and bulky turnings at your machining center. PRAB`s horizontal axis crusher processes up to 300 lbs/hr (177 kg/hr), reduces up to 12 times the volume of scrap and increases CNC production. Reduce housekeeping by either attaching the crusher to your machines or use it as a freestanding unit.
Features
- Economical design for continuous low volume reduction
- Reduces downtime on production floor
- Dangerous scrap handling is minimized
- Engineered for on-site maintenance with easy access to wear parts for replacement.
Options
- Integrate with fluid reclamation or chip processing equipment for a complete system
- Designed to be fed by standard chip conveyors
- Efficient, low motor power with quiet operation
- Economical design for continuous low volume reduction
- Low maintenance, with only a single moving part

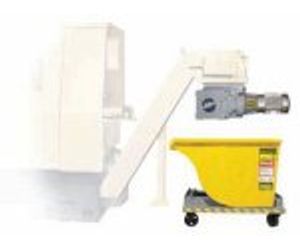

- Use free standing or directly attached to a machine
- Reduce down time on the production room floor
- Reduce dangerous scrap handling
- Covered by PRAB’s one-year warranty
Processes bulky, stringy turnings at the source (the machining center) and streamline the production process. These units are engineered to reflect the same durability and longevity which PRAB is well know for in their metal processing equipment.
- Nominal Capacity:* 100 - 300 lbs/hr (45 - 177 kg/hr)
- Dimensions: 3 ft x 3 ft (1 m x 1 m)
- Motor Power: 2 hp
- Net weight: 550 lbs (249 kg)
*Capacity varies with different types of material. For accurate output figures in lbs/hr (kg/hr) take the horizontal axis crusher for a FREE test drive!
Feed hoppers are optional based on your equipment`s output. Available in multiple sizes to fit your application requirements.

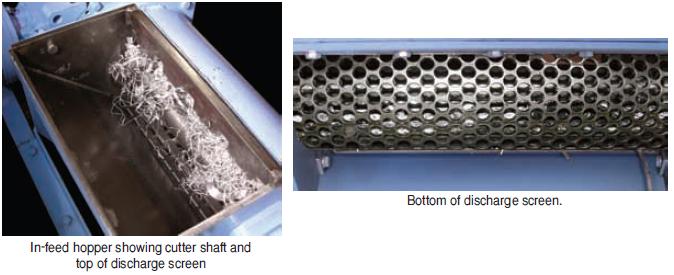

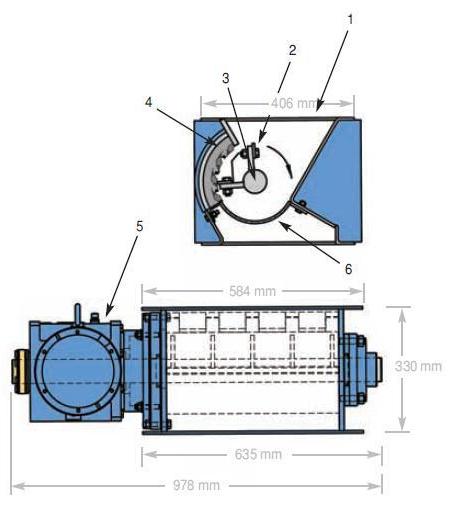

- In-feed hopper
- Replaceable cutting blade
- Self feeding/cutter shaft
- Fixed, hardened cutter ring
- Motor/gear box
- Fixed, discharge screen
