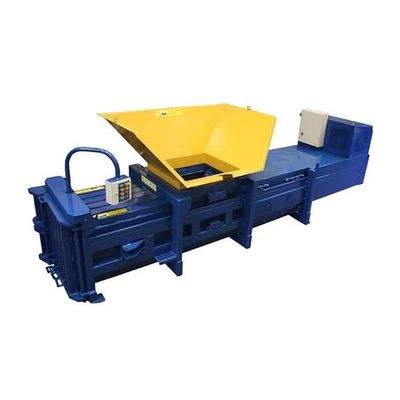

RACE - Model HZ50T -Horizontal Baler
Baler Features: PLC controls offers safe and easy operation. Removable top and bottom shear blades. Lower photo eye for Automatic start /stop. 6 Oil filled cast Nylon slide for plunger guides. Full stroke compaction. Automatic shear jam correction. Hydraulic door latch with safety interlock. Left & right door swing.
Most popular related searches
- Feed conveyer for loading material
- Bin lifter with safety cage for Loading material .
- Wire pushing system for faster and easier tying off of bales.
BALER DIMENSIONS
- Height: 2.320m
- Length: 7.000m
- Depth: 1.782 m
- Weight: 7.5T
- Power Supply: 380–400V (3phase)
- Motor:11kw & 2.2kw Pressing
- Pressing force 50 Ton
BALE DIMENSIONS
- Height: 0.750 m
- Length: 1.500m
- Depth: 1.100 m
- Weight: up to 550kg
- Cycle times: 50 seconds
LOADING APERTURE SIZES
- Width: 1.200 m
- Depth: 1.009 m
