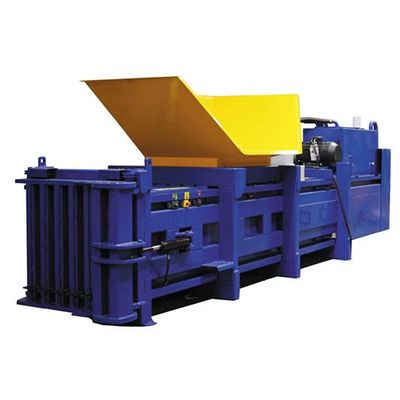

RACE - Model HZ70T -Horizontal Baler
Baler Features: PLC controls offers safe and easy operation. Removable top and bottom shear blades. Lower photo eye for Automatic start /stop. 6 Oil filled cast Nylon slide for plunger guides. Full stroke compaction. Automatic shear jam correction. Hydraulic door latch with safety interlock. Left & right door swing. 50/60/70 ton Auto settings.
Most popular related searches
- Feed conveyer for loading material.
- Bin lifter with safety cage for Loading material .
- Wire pushing system for faster and easier tying.
BALER DIMENSIONS
- Height: 2.320 m
- Length: 7.000 m
- Depth: 1.782 m
- Weight: 9T
- Motor: 22 kW 63 Amp. (3-phase 5 pin)
- Platen Force: 70T Max.
BALE DIMENSIONS
- Height: 0.750 m
- Length: 1.500m
- Depth: 1.100 m
- Weight: up to 550kg
- Cycle times: 45 seconds
LOADING APERTURE SIZES
- Width: 1.200 m
- Depth: 1.009 m
