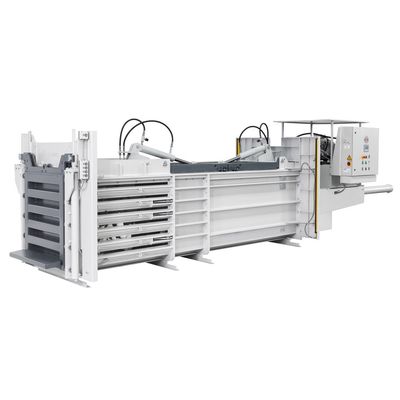

HSM - Model HL 3521 T -Horizontal Baling Press
FromHSM GmbH Co. KG
The model HSM HL 3521 T can be filled via conveyor and is especially designed to compact tyres. Of course, other packaging materials can also be compressed.
Most popular related searches
horizontal baling press
baling press
bale strapping
horizontal baler
horizontal baler press
strap baling wire
strapping wire
industrial recycling
wire recycling
baling wires
- Hydraulic loading flap for maximum operating comfort and for precompressing
- Hydraulic counterplate for bale removal ensures optimum operating convenience and safety
- Stored-program controller PLC
- Feeding: manual or automatic
- Manual bale strapping with wire (tape as option)
- Order number: 6270000
- Pressing power: 320 kN
- Specific pressing power: 40 N/cm²
- Driving power: 22 kW
- Voltage / Frequency: 400 V / 50 Hz
- Cycle time when idling vacío: 44 s
- Volume throughput in idle operation (theor.): 137 m³/h
- Loading aperture width x Loading aperture length: 800 x 2100 mm
- Bale width x Bale height x Bale length: 800 x 1000 x 1200 mm
- Bale weight: 850 Kg
- Method of loading: manual
- Length x Width x Height: 7900 x 1660 x 2485 mm
- Method of strapping: horizontal
- Number of strappings: 5
- Type of consumables: Wire
- Industry type: Recycling & Disposal, Logistics & Distribution, Food & beverage industry, Industry & Manufacturing, Print & Packaging
- Press material: Polystyrene, Big Bags, Tyres, Cardboard, Mixed paper, Plastic film
- Use for product line: HL
