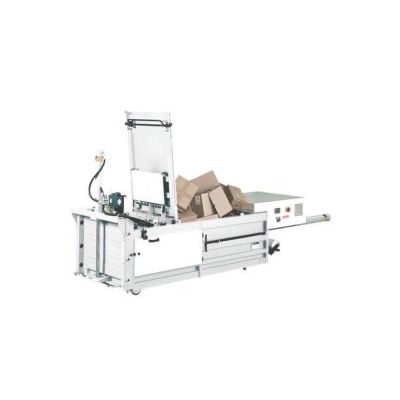

HSM - Model 12 Gigant -Horizontal Baling Presses / Horizontal Balers
FromHSM GmbH Co. KG
Our HSM 12 Gigant is in its element anywhere where voluminous cardboard packaging, plastic fi lm or other materials need to be pressed. The extremely large loading aperture makes the unit simple and convenient to load. The result is compact bales which can be easily transported. And if the baler is required urgently in another part of the company – no problem: its 4 castors mean that it can be used anywhere at any time.
Most popular related searches
Large loading aperture
- High throughput capacity with large loading aperture
Suitable for bulky material
Long service life
- Long service life due to the wear-resistant electro-hydraulic drive
- Smooth, trouble-free operation due to torsion-free press ram guidance with roller bearings
Pressing plate
- Compaction against counterplate by horizontal moving press ram
Low overall height
- Article Number: 000000000006214174
- EAN: 4026631016988
- Pressing power: 140 kN
- Loading aperture width: 800 mm
- Loading aperture length: 1200 mm
- Bale length: 900,00 mm
- Bale width: 800,00 mm
- Bale height (up to): 600,00 mm
- Bale weight, depending on material (up to): 110,00 kg
- Driving power: 7.5 kW
- Frequency: 50 Hz
- Width x Height x Length: 1030 x 1630 x 4300 mm
- Weight: 1280,00 kg
- Number of strappings: 3
- Strapping material: Polyester tape
- Industry type: Industry and Manufacturing, Logistics and Distribution, Print and Packaging, Retail
- Press material: Plastic film, Cardboard, Mixed paper
- Volume throughput mixed paper (theor.): 2700 kg/h
- Volume throughput foil (theor.): 1800 kg/h
- Volume throughput cardboard (theor.): 1800 kg/h
