HSM - Model 8 TE - Horizontal Baling ...

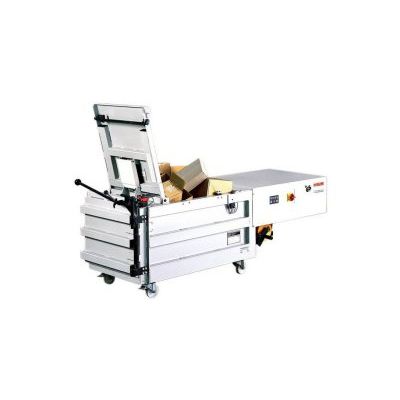

HSM - Model 8 TE -Horizontal Baling Presses Small Baler

FromHSM GmbH Co. KG

SHARE

In terms of performance, efficiency and flexibility our mobile. HSM 8 TE small baler is hard to beat. This compact baling press is also extremely easy to operate: insert the strapping tape, switch it on and watch it go! Also the strapping and ejection of the bales can be performed easily. The complete bale ejection means that the compact bales are ejected by the machine directly onto a pallet and can be easily transported to a storage location.

Most popular related searches

horizontal baling press

horizontal baler press

horizontal baler

press manual feed

Large loading aperture

High throughput capacity with large loading aperture

Suitable for bulky material

Long service life

Long service life due to the wear-resistant electro-hydraulic drive
Smooth, trouble-free operation due to torsion-free press ram guidance with roller bearings

Pressing plate

Compaction against counterplate by horizontal moving press ram

Feeding: manual or automatic

Low overall height

Article Number: 000000000006208194
EAN: 4026631016902
Pressing power: 80 kN
Loading aperture width: 730 mm
Loading aperture length: 645 mm
Bale length: 500 mm
Bale width: 645 mm
Bale height (up to): 505 mm
Bale weight, depending on material (up to): 40 kg
Cycle time when idling vacío: 21 s
Width x Height x Length: 2520 x 780 x 850 mm
Number of strappings: 3
Strapping material: Polyester tape
Industry type: Industry and Manufacturing, Logistics and Distribution, Print and Packaging, Retail
Press material: Plastic film, Cardboard, Mixed paper
Volume throughput PET (theor.): 2310 kg/h
Volume throughput foil (theor.): 1540 kg/h
Volume throughput cardboard (theor.): 1540 kg/h
