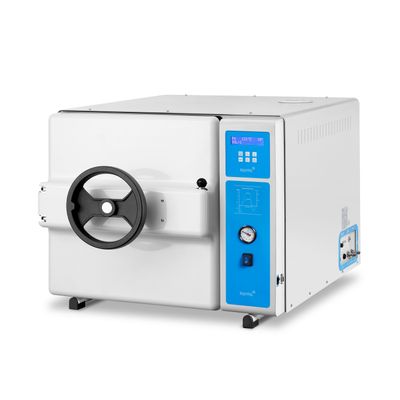

RAYPA - Model AHS-DRY Series -Horizontal Benchtop Laboratory Autoclaves with Drying
The AHS DRY horizontal benchtop automatic autoclaves deliver great performance for general labware sterilization in many industries, educational and medical facilities and research institutes with the aim of increasing the productivity of the laboratory. The AHS DRY Series are intended for the sterilization of a wide range of solid materials such as unwrapped and wrapped items, small porous objects and hollow ware type B (slightly deep and broad cavities), glass, plastic, metallic objects and waste bags. The drying feature and the automatic water control level reduce operator time dedicated to the autoclave leading to facilitate the sterilization procedures in the general laboratory.
- Sterilization chamber made of AISI-316L stainless steel.
- Equipment controlled by digital PID microprocessor, with 4 predefined and 6 editable programs, adjustable by time, temperature, drying time and type of cycle (solids or liquids).
- Cycles with initial simple prevacuum and final drying by vacuum pump and heating jacket.
- Alphanumeric LCD screen that shows sterilization parameters, alerts and errors.
- RS-232 port to connect PC or printer.
- Includes a water tank that automatically feeds the sterilization chamber.
- Optional automatic feed of the water tank.
- Cycle time range: 1-250 min.
- Bacteriological filter for air inlet.
- Automatic drying.
- Agar mode (40 to 80 ºC) and programs for liquids.
- Optional heart probe.
- Connection to PC.
- Optional control software.
- Programmable auto-start: 24 h
- Optional integrated or external printers.
- Safety valve and thermostat.
- Hydraulic lid blocking system while positive pressure exists in the chamber.
- Open lid sensor.
- Water level detector.

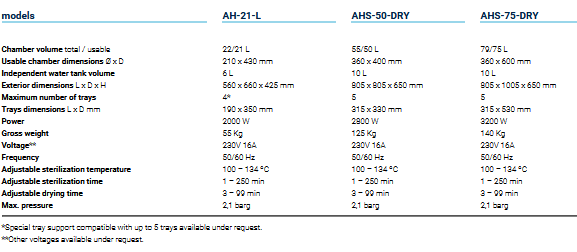

AH-21-L
- Support for 4* trays.
- 3 stainless steel perforated trays.
- Auxiliary tray.
- Holding clamp.
- 1.5 m flexible tube to drain.
- Bag support.
*Special tray support compatible with up to 5 trays available under request.
AHS-50-DRY & AHS-75-DRY
- Support for 5 trays.
- 2 stainless steel perforated trays (BAH-B).
- Auxiliary tray.
- 1.5 m flexible tube to drain.
